Jackery Solar Generator 500 v2 with SolarSaga 100W Air
Free shipping to the contiguous U.S.
Description

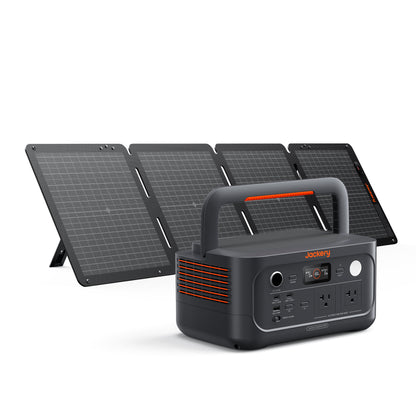

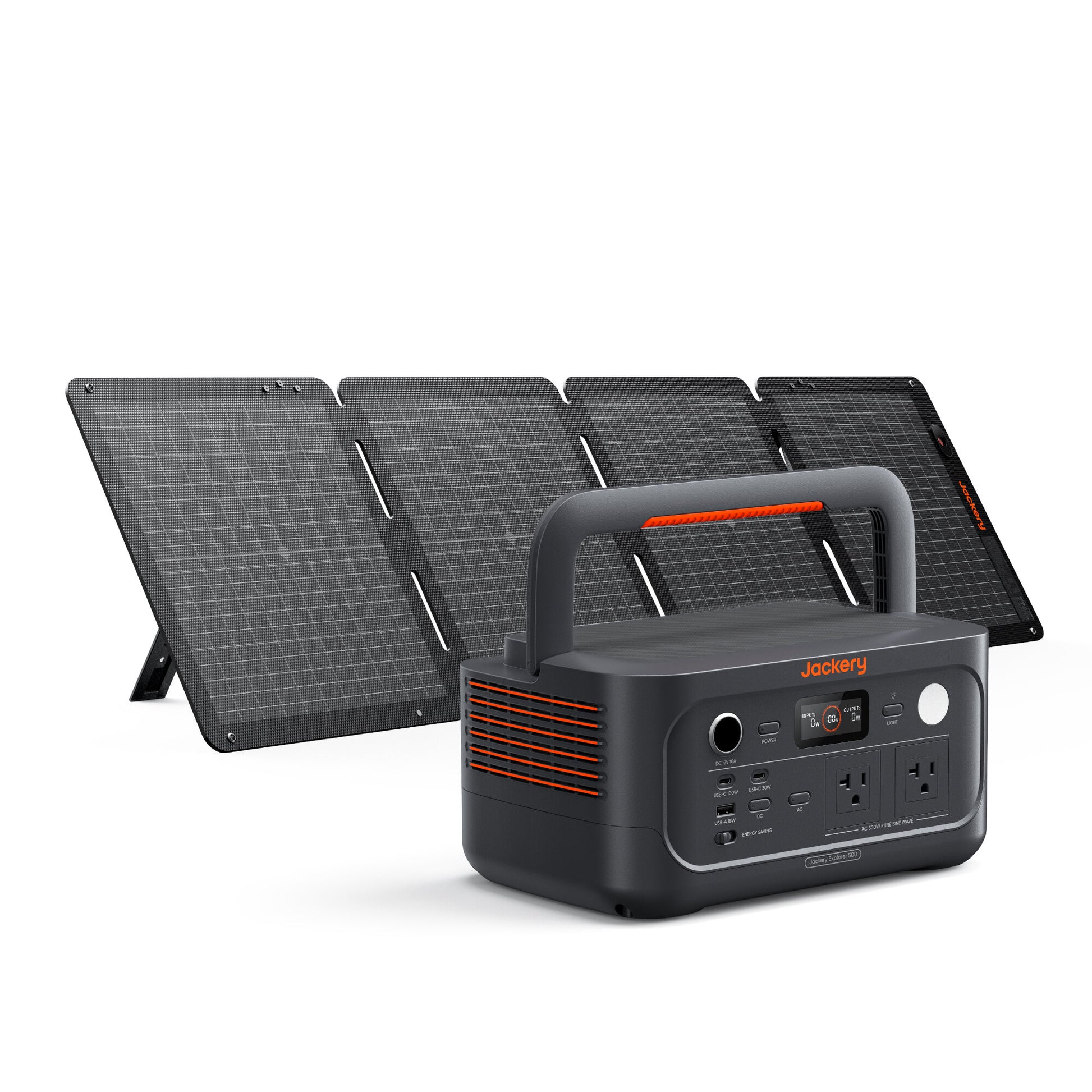

The Solar Generator 500 v2 pairs an Explorer 500 v2 with a SolarSaga 100W Air panel: 512 Wh and 500 W at about 20 lb for the pair, for small loads and a kit that moves in one trip.
It is sized for electronics and small gear, not for running a household.
Shipping and Delivery
Delivery: Free within the 48 contiguous states. We do not ship to Alaska or Hawaii.
Cartons: The station and the rest of the kit can arrive in separate cartons, on different days. That is normal, so check each one on arrival.
Key Features
Output: 500 W and 1,000 W surge from two 120 V outlets.
UPS: Switches within 10 ms. It does not support 0 ms switching, so do not use it on data servers or workstations.

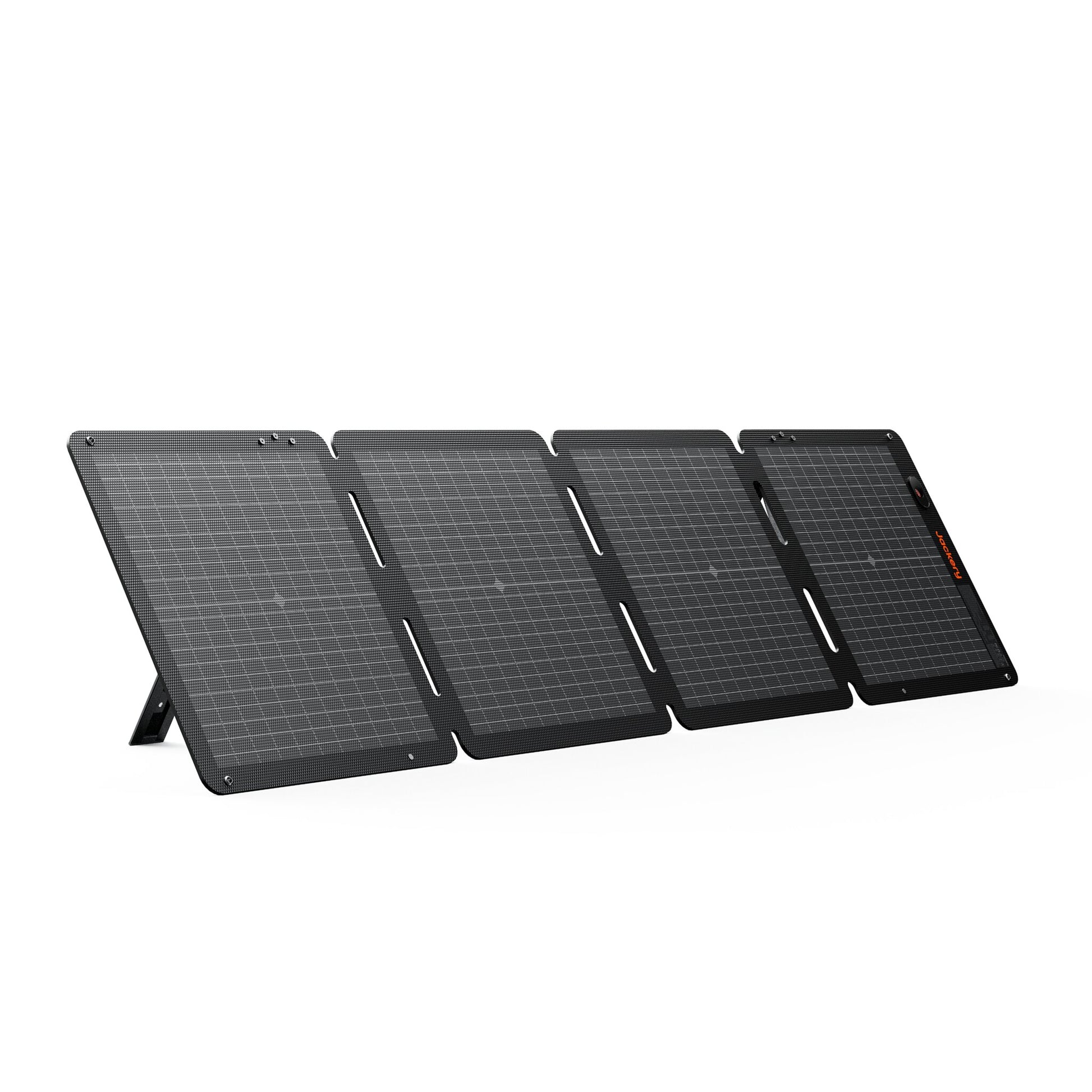

Panel: SolarSaga 100W Air, rated 100 W and 110 W in bifacial test conditions, IP68, about 7 lb. It folds to about 17.0 × 16.7 × 1.9 in and opens to about 65.7 × 16.7 in.
Solar: One DC8020 port at 16–60 V, up to 200 W. The panel refills the station in about 6.8 hours.
Light: LED with an SOS mode.
Product Specifications
| Capacity | 512 Wh LiFePO4, rated 6,000 cycles to 70%+ capacity |
| AC input | 100–120 V, 15 A maximum |
| AC recharge | 80 minutes |
| Surge protection | 3 kV |
| Temperature | Charge and discharge -4°F to 113°F |
| Size | 12.2 × 8.1 × 6.2 in |
| Weight | 12.57 lb |
| Certification | UL 2743, TÜV Rheinland certificate CU 72503351 0001 |
What's Included
In the box: Explorer 500 v2, AC charging cable, user manual, and a SolarSaga 100W Air panel with its charging cable and storage bag.
Installation and Compatibility
Where it runs: Indoor use only. It is not waterproof or dustproof.
In a shop: During operation in a workshop or repair facility, do not place it on the floor or less than 18 in. above the floor.
Panel use: Keep the panel out of the rain, and store it indoors after charging.
Warranty
Term: 3 years from the date of purchase, for the original purchaser, with proof of purchase. This covers the station.
Not covered: Misuse, abuse, modification, accident, use beyond normal consumer use, repair by an unauthorized party, and units bought through an online auction.
Battery condition: Fully charge the unit within 7 days of purchase and at least once every 6 months, or the battery cell falls outside the warranty.
Claims: Contact us first, with your order number and the serial number.
Frequently Asked Questions
Is there an app?
No. This station has no app, Wi-Fi, or Bluetooth.
Can I add a second panel?
Yes, a second 100 W panel, through a connector sold separately.
Shipping & returns
Returns follow the stated return window — see returns & exchanges. Freight returns are arranged by our team.
Lithium battery shipments travel by ground only, never air, and can carry destination restrictions. Feeding household circuits through a transfer switch needs a licensed electrician and, in most places, a permit and inspection.
Solar generator kit
The starter kit that still charges itself
An Explorer 500 v2 with a SolarSaga 100W Air panel: 512 Wh and 500 W of output at under 20 lb for the pair. This is bench, electronics and camping backup — sized for what it does, not pretending to run a household.
In the kit

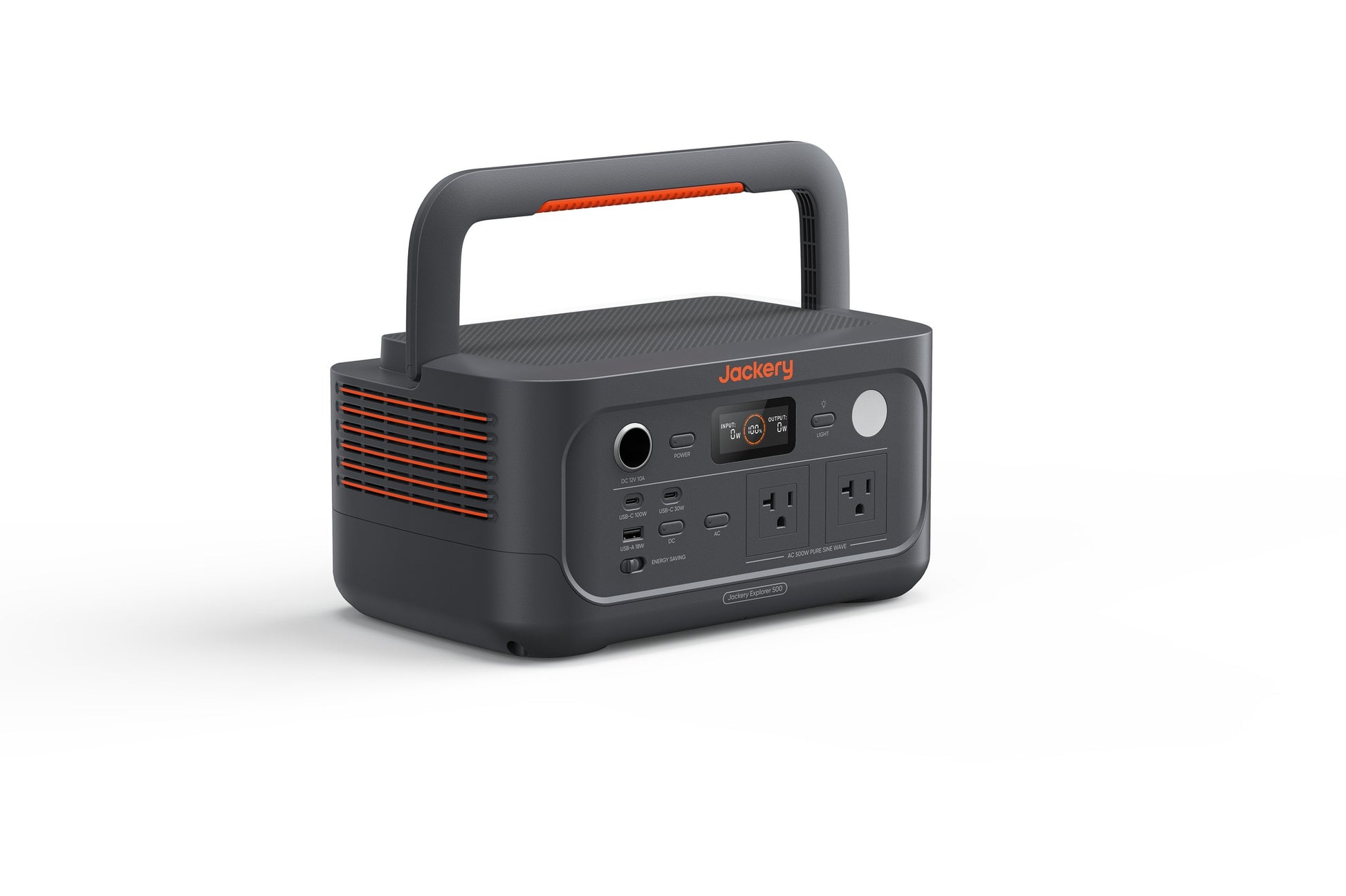

- Explorer 500 v2Power stationModel JE-500A; 12.57 lb.
- SolarSaga 100W Air100 W folding panel100 W rated (110 W BNPI); about 7.1 lb (3.2 kg); IP68.
Full specifications
| Battery capacity | 512 Wh — 20 Ah / 25.6 V (LiFePO4) |
|---|---|
| Continuous AC output | 500 W — 2 outlets |
| Surge / peak output | 1,000 W |
| UPS transfer time | 10 ms |

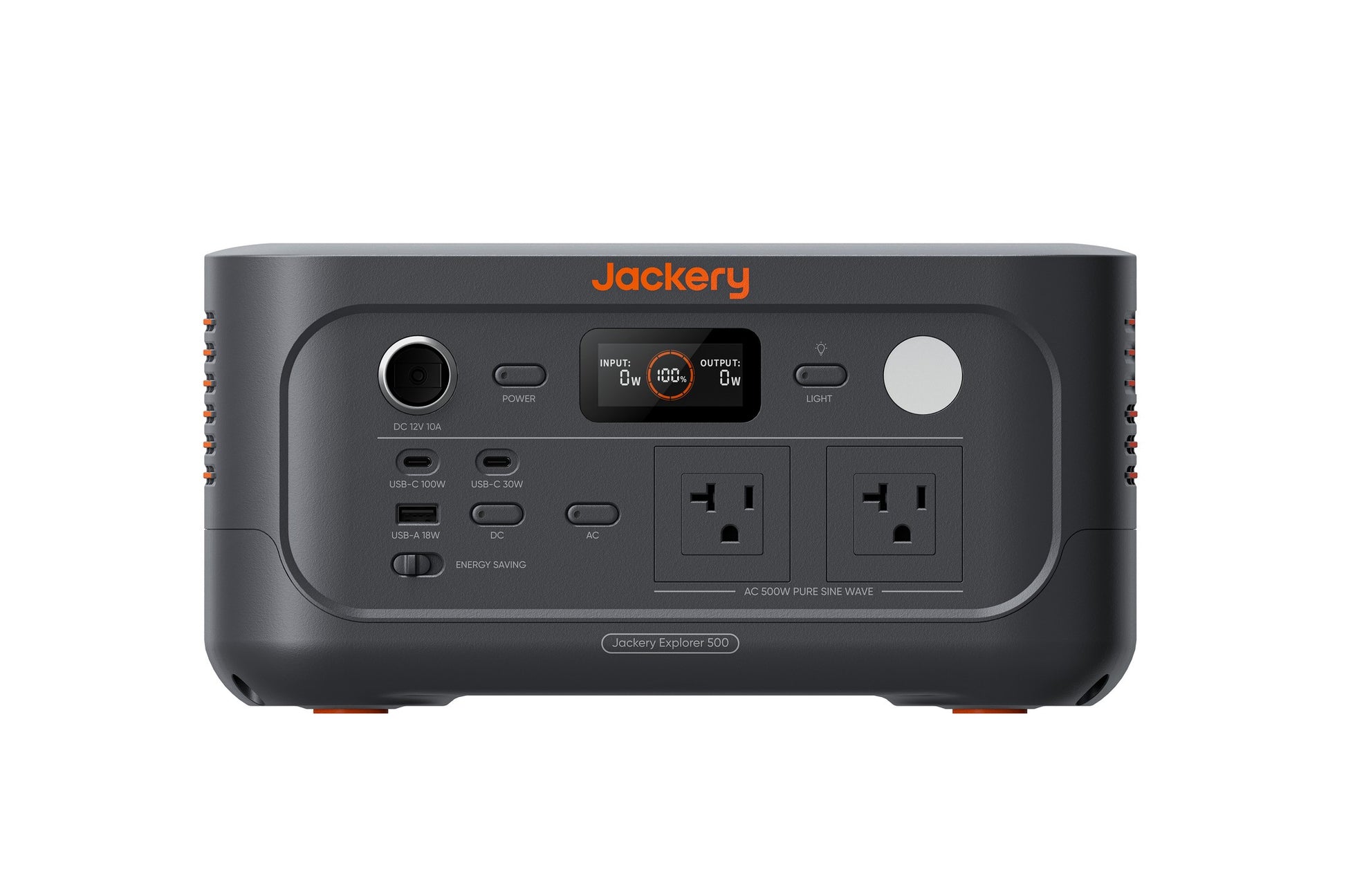

| Ports | 2 × AC, USB-C 100 W, USB-C 30 W, USB-A 18 W, 12V/10A car port |
| Solar input | 200 W station maximum (DC8020, 16–60 V); the included 100W Air supplies up to 100 W (110 W BNPI) |
| AC input | 100–120V, 15 A max |
| Cycle life | 6,000 cycles to ≥70% capacity |

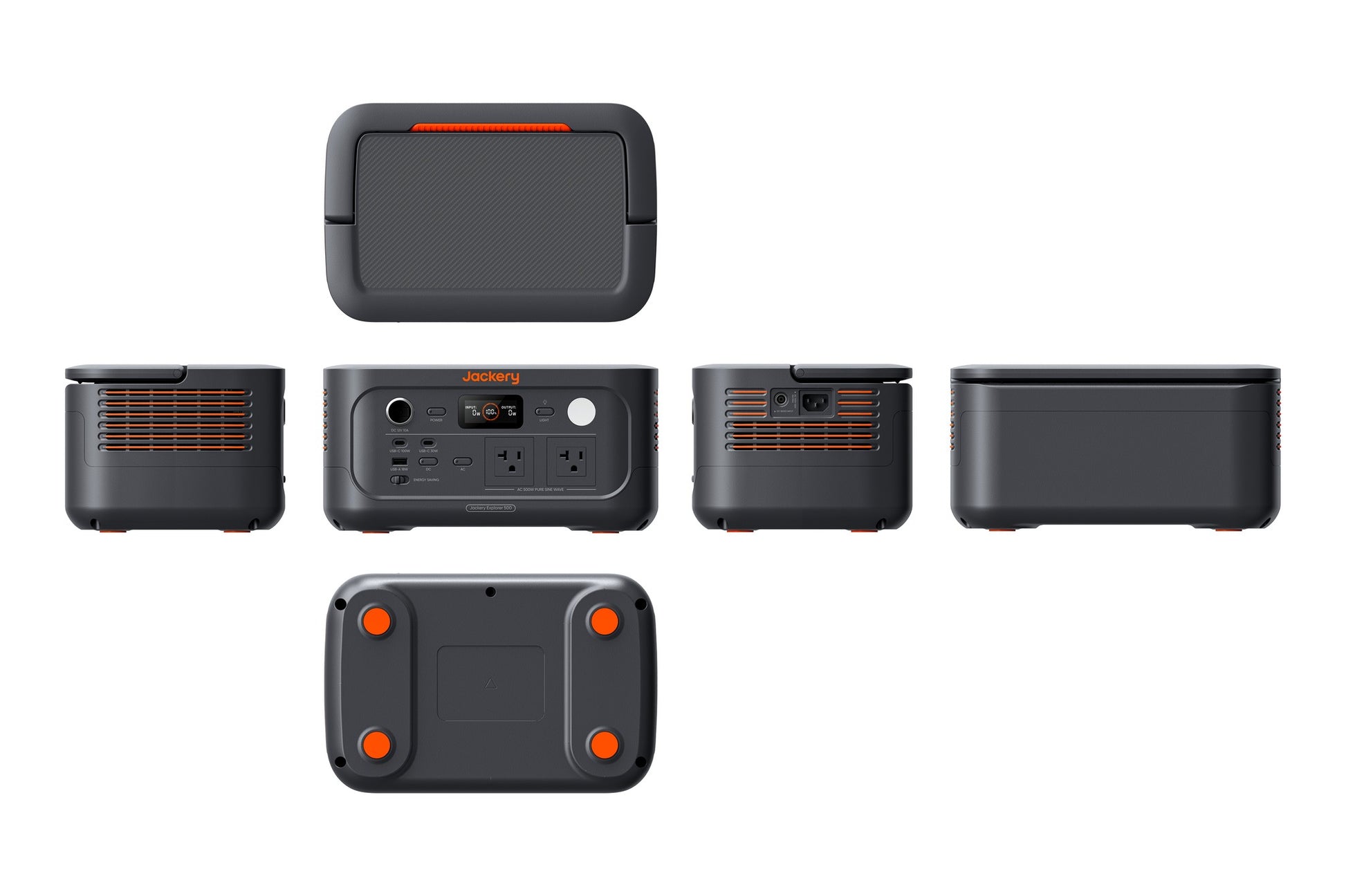

| Station dimensions | 12.2 × 8.1 × 6.2 in (31.1 × 20.5 × 15.7 cm) |
| Station weight | 12.57 lb / 5.7 kg |
| Panel weight | About 7.1 lb (3.2 kg) |
| Panel dimensions | 17.2 × 16.6 × 2.2 in (436 × 422 × 57 mm) folded; 66.1 × 16.6 × 0.9 in (1678 × 422 × 24 mm) unfolded |
| Panel | SolarSaga 100 W Air — 100 W (110 W bifacial), IP68, 7.1 lb, 4-fold rollable |
| Warranty | 3 years on the station |
Combined carry weight is about 19.6 lb — a sum of the two published component weights, not an official bundle figure.
Who it is for
For small loads and a kit that moves in one trip
This is bench, electronics and camping backup, sized for what it does: 512 Wh and 500 W from an Explorer 500 v2, with a 100 W folding panel, at about 19.6 lb for the pair. It is not built to run a household. If you need more, look at the HomePower 1000 Plus v2 and up.
500 W continuous
1,000 W surge from two AC outlets.
10 ms UPS
It carries the network through the switchover.
100 W rollable panel
Rated 100 W, or 110 W bifacial. IP68, about 7.1 lb.
Rated to 6,000 cycles
At 70% capacity or better.
Plain answers
What can charge it?
The panel, a wall outlet, or a car, with a car cable sold separately.
Can I add more solar?
The station takes up to 200 W at 16 to 60 V, and this panel supplies up to 100 W, or 110 W bifacial.
How big is the panel?
17.2 x 16.6 x 2.2 in folded and 66.1 x 16.6 x 0.9 in unfolded.
Before you order
Free shipping within the 48 contiguous states. It ships by parcel.
3 years on the station. Returns are handled under our return and refund policy.
