Beta C45PRO Modular Garage Tool Storage Cabinet System

$3,373.00$3,747.50In stock

Ships freight — what to expect

Configuration
Talk to a specialist
Freight delivery. Ships by freight on a pallet, delivered curbside on a liftgate truck: the carrier lowers it to the curb and does not bring it inside. Shipping cost is shown at checkout. How curbside freight works
Warranty & certifications: per the supplier documentation included with this product. Claims run through SmartBay support.

Description

The Beta C45PRO is a modular garage tool storage system rather than a single cabinet: a run of wall and floor modules in 18-gauge steel that you can add to or rearrange as the garage changes around you. It comes as one of three pre-configured runs, from a 77 in. worktop up to 116 in.

All three are pre-configured but not fixed, so a 77 in. run today becomes a longer one when you finally move the freezer. At 19.49 in. deep, this is the run for a smaller space, or for matching C45PRO cabinets you already own.

Shipping and Delivery

Stock: Held at Beta's warehouse in Columbia, Pennsylvania.

Freight: Ships on a pallet to the 48 contiguous states, curbside on a liftgate truck. The carrier lowers it to the curb and does not bring it inside, so plan help for the last stretch. Freight is shown at checkout.

Key Features

Worktop: Stainless-steel-coated MDF on all three runs.

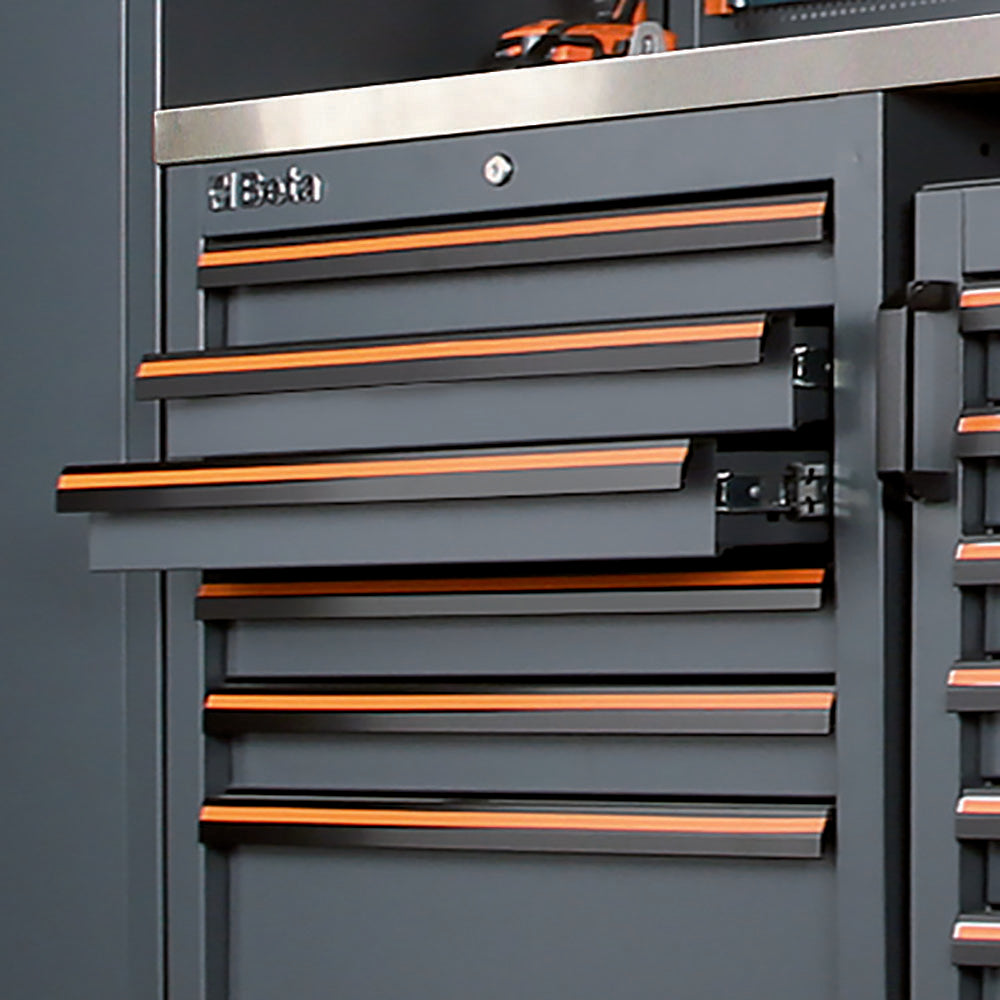

Drawers: Ball-bearing slides, with foam rubber mats in the bases.

Leveling: Vertically adjustable feet on the drawer cabinet, which helps on a floor that slopes toward a drain.

Security: Lockable compartments run throughout, so the expensive things get shut away.

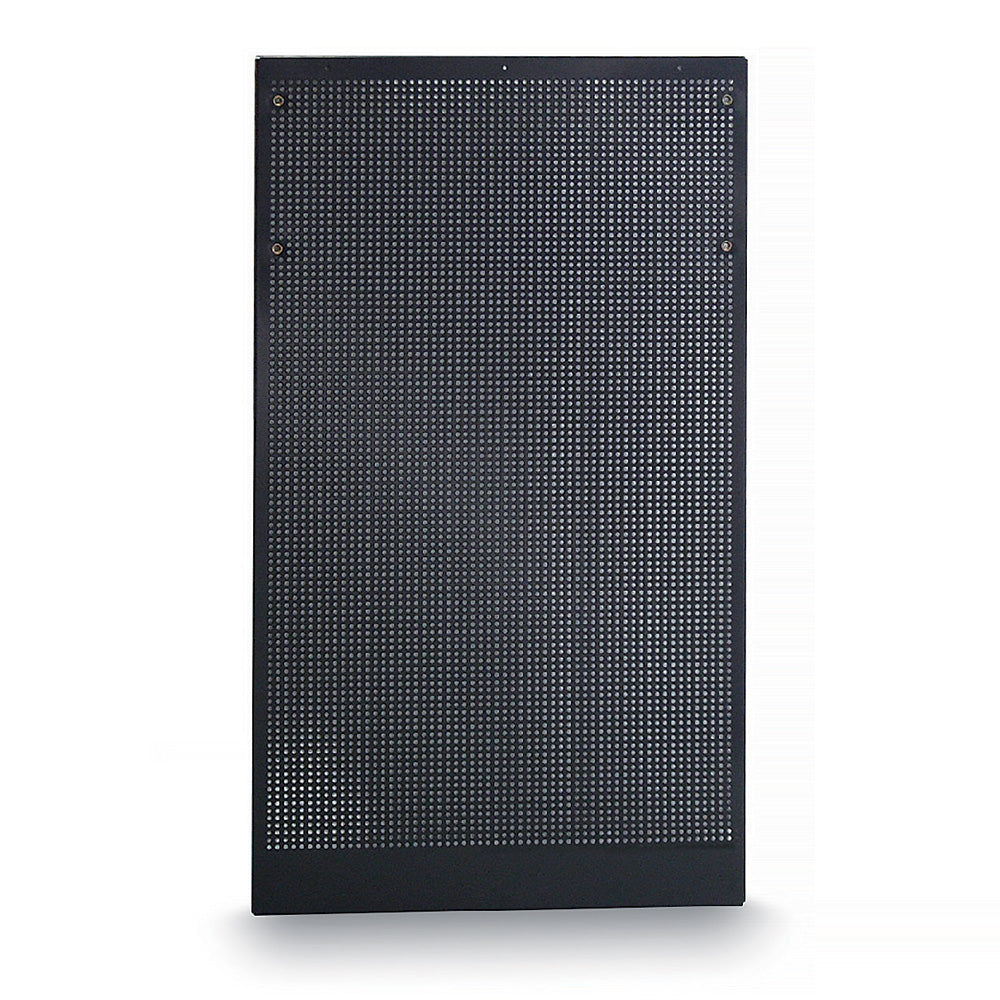

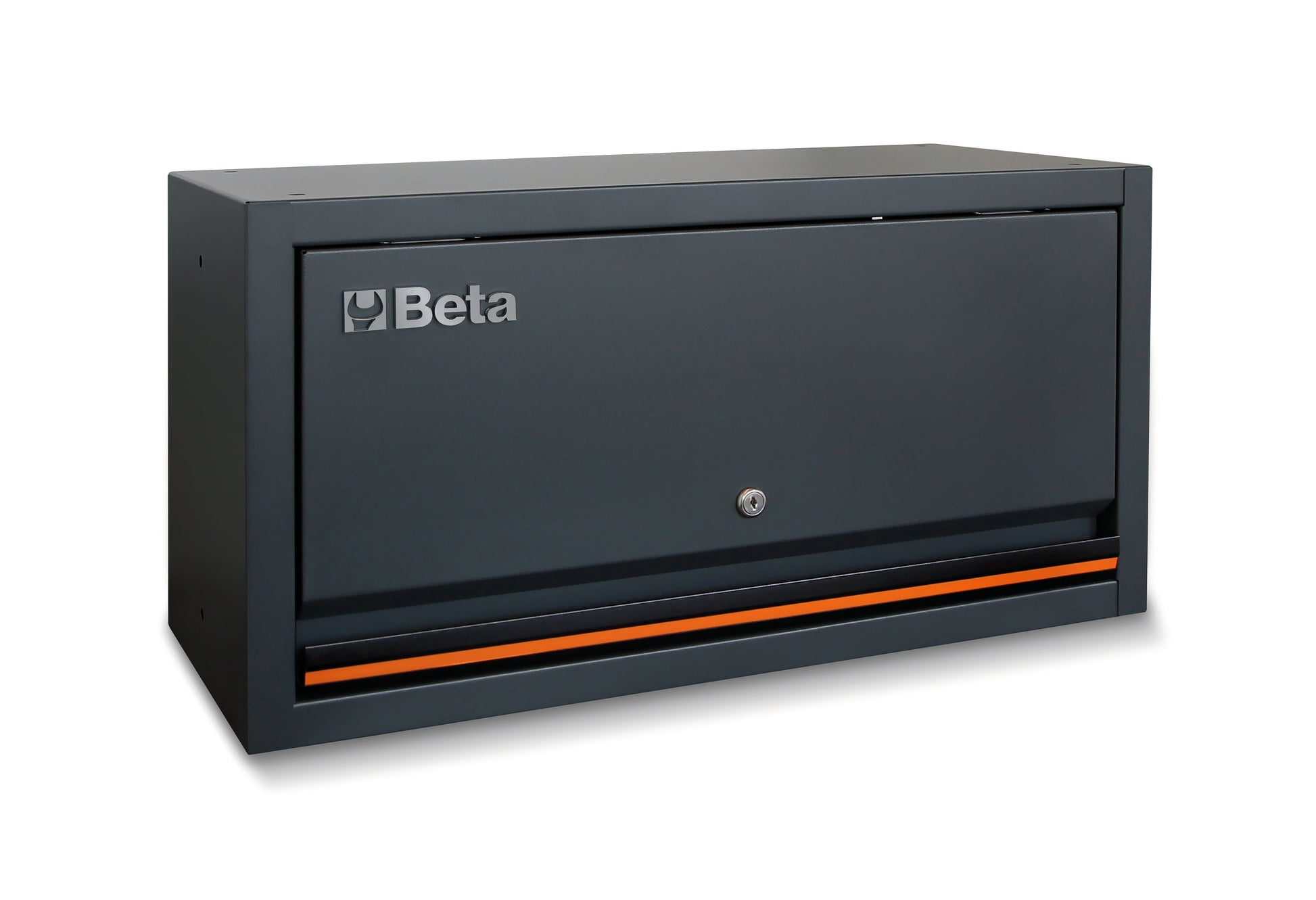

Wall storage: Wall-mounted cabinets and perforated tool panels hang on the brackets in the set.

The Runs

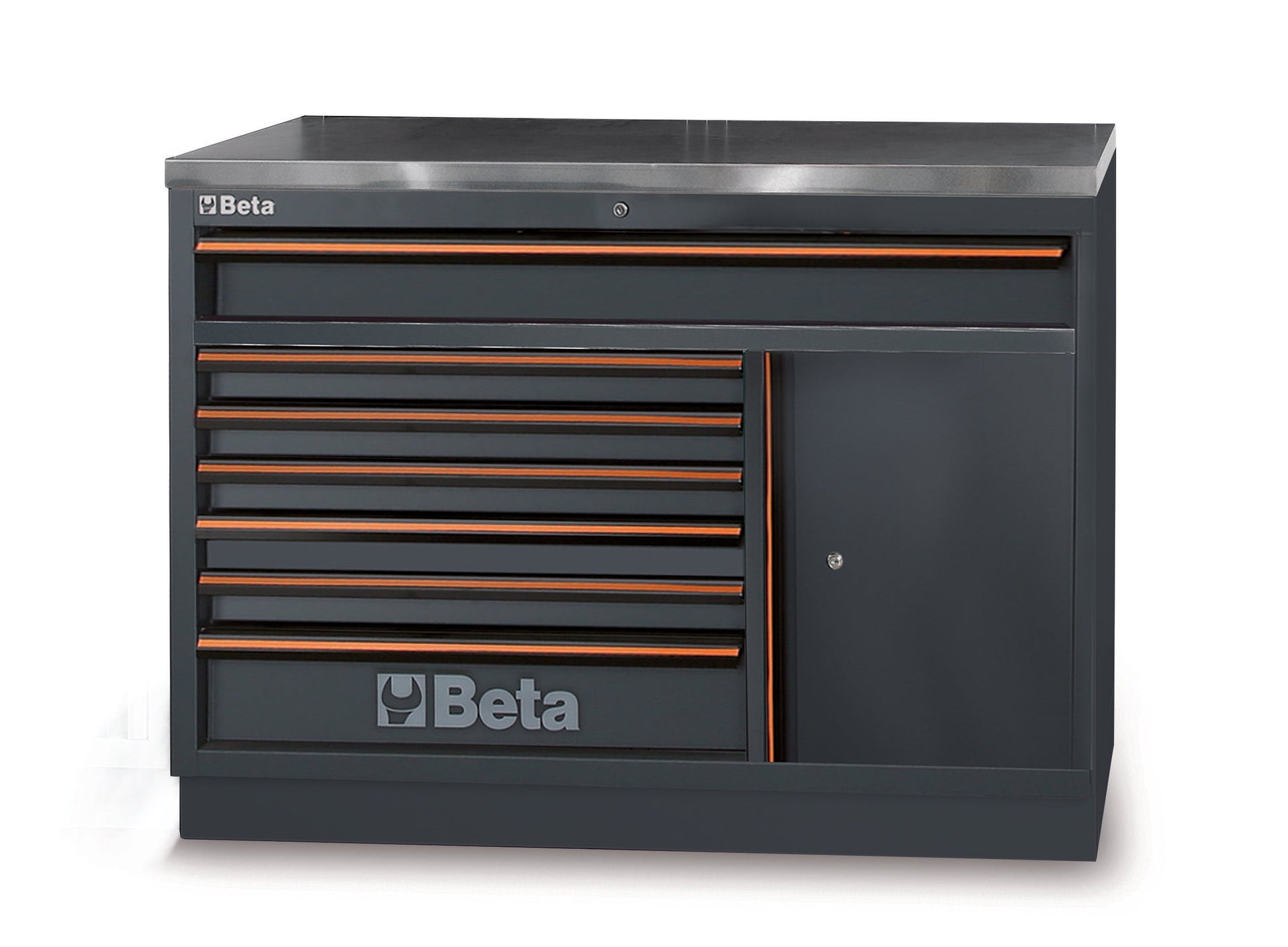

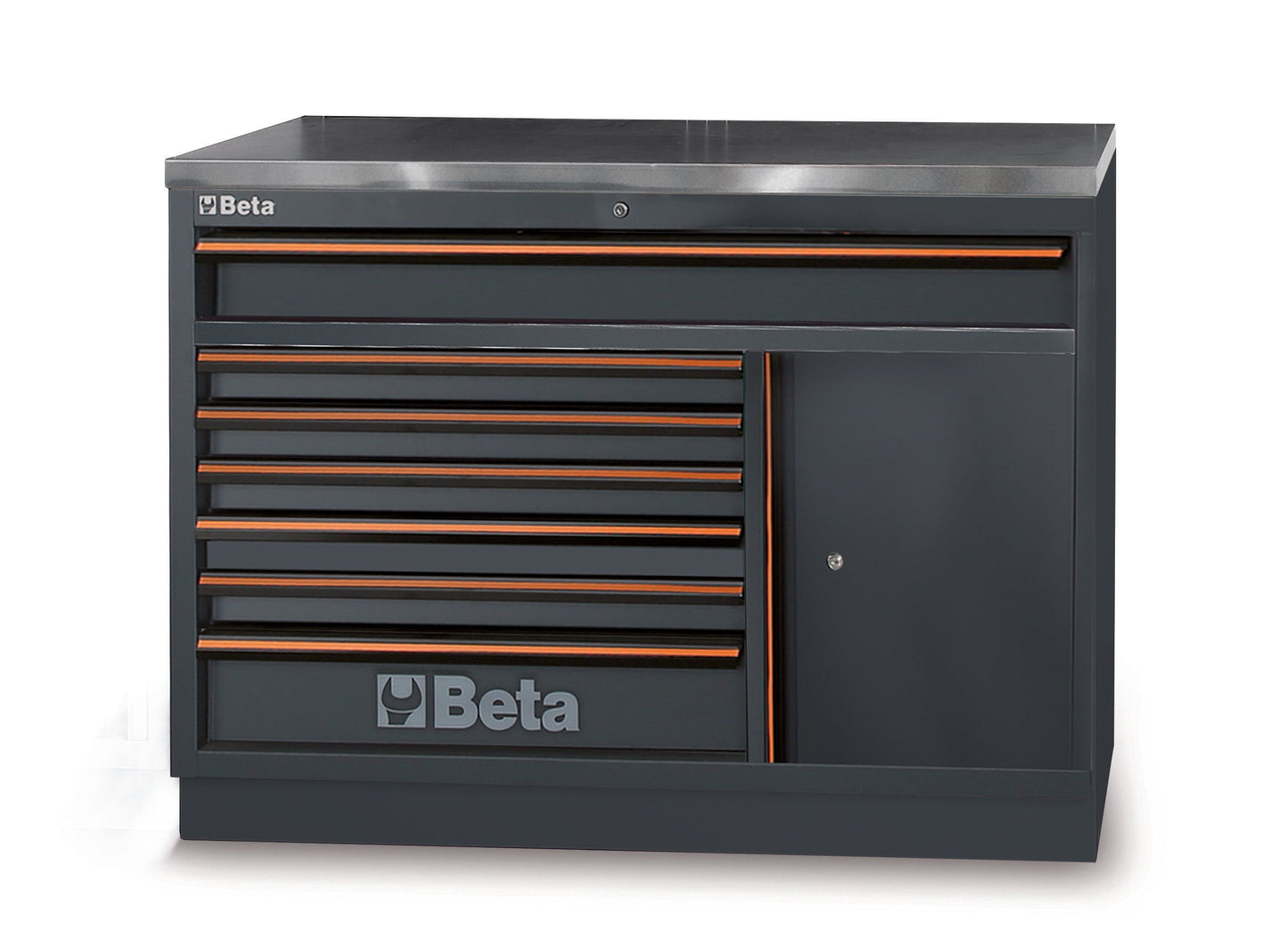

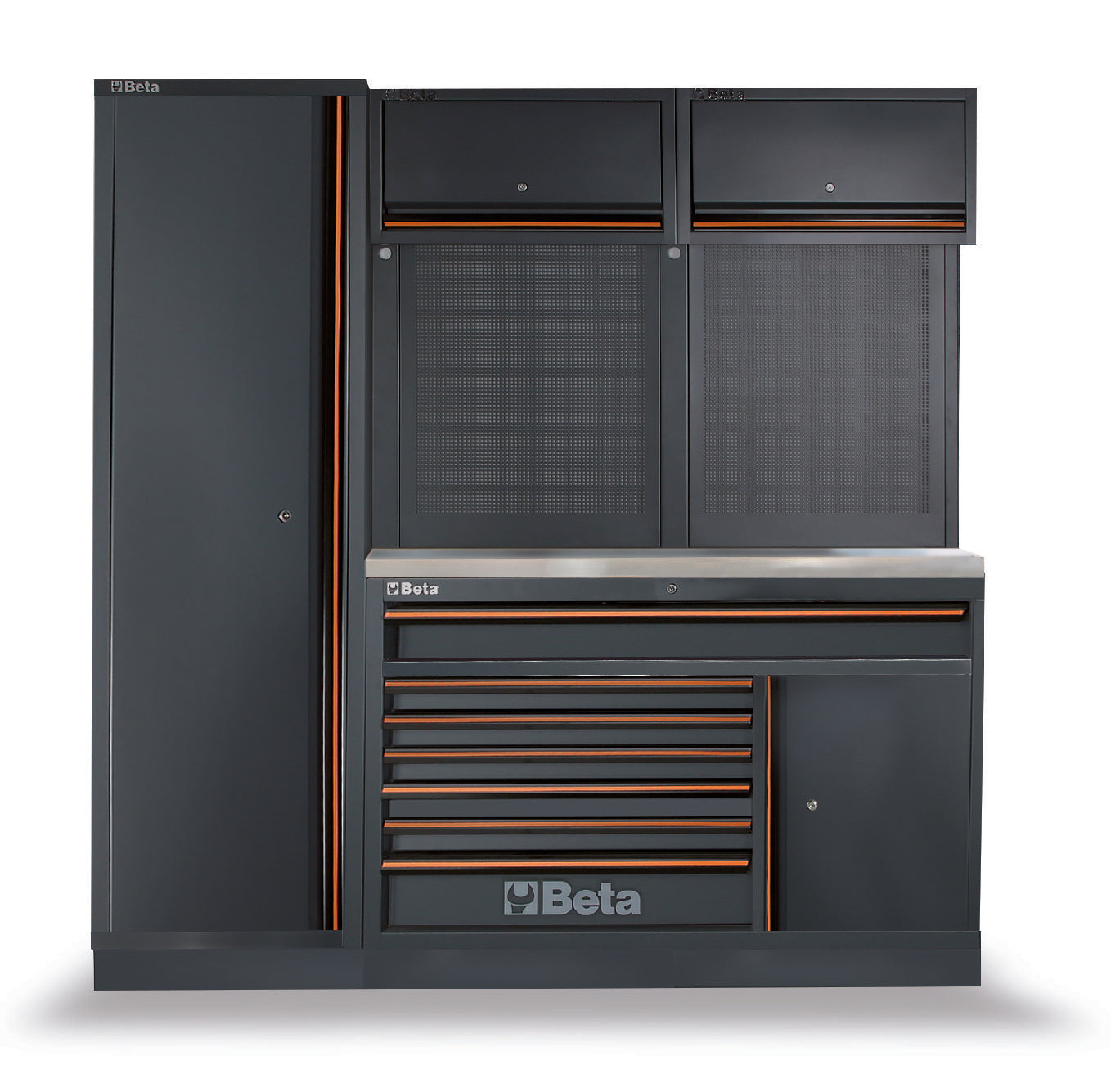

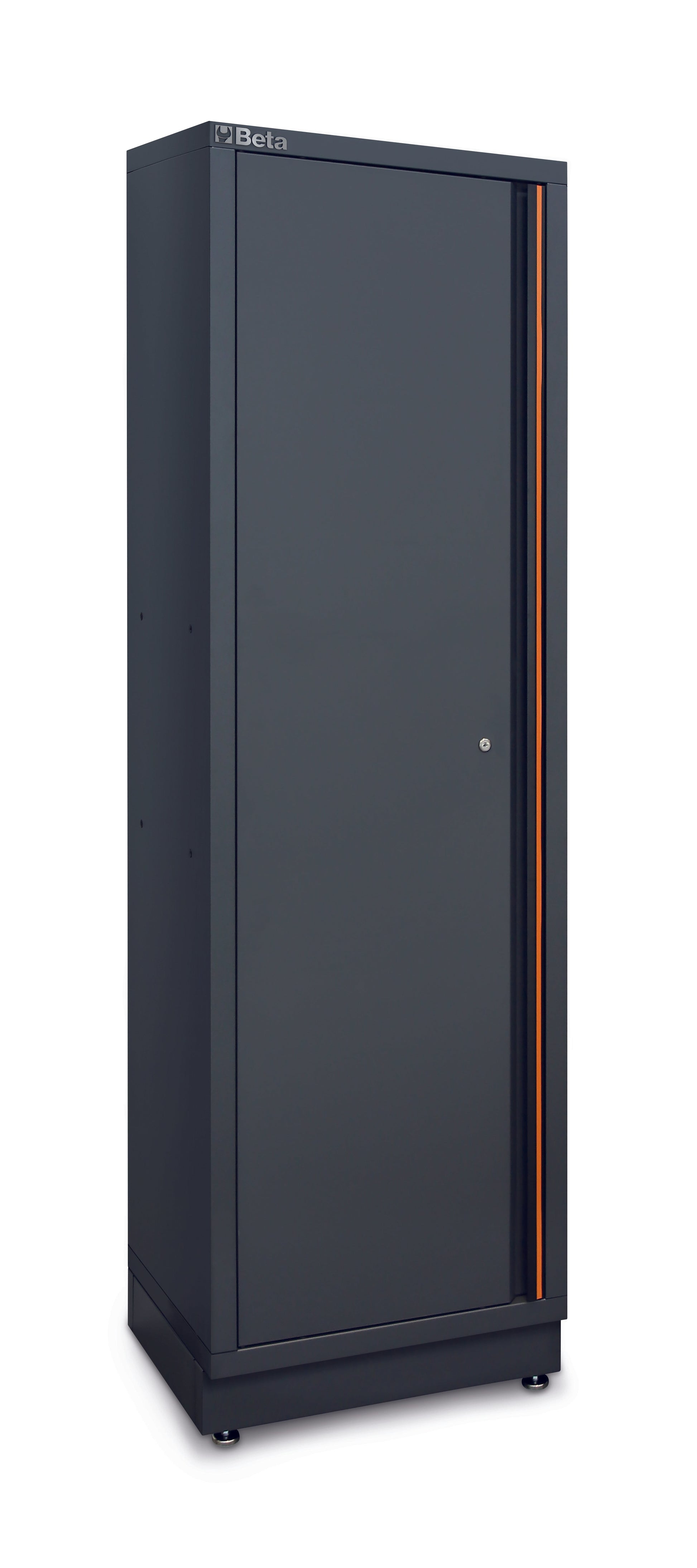

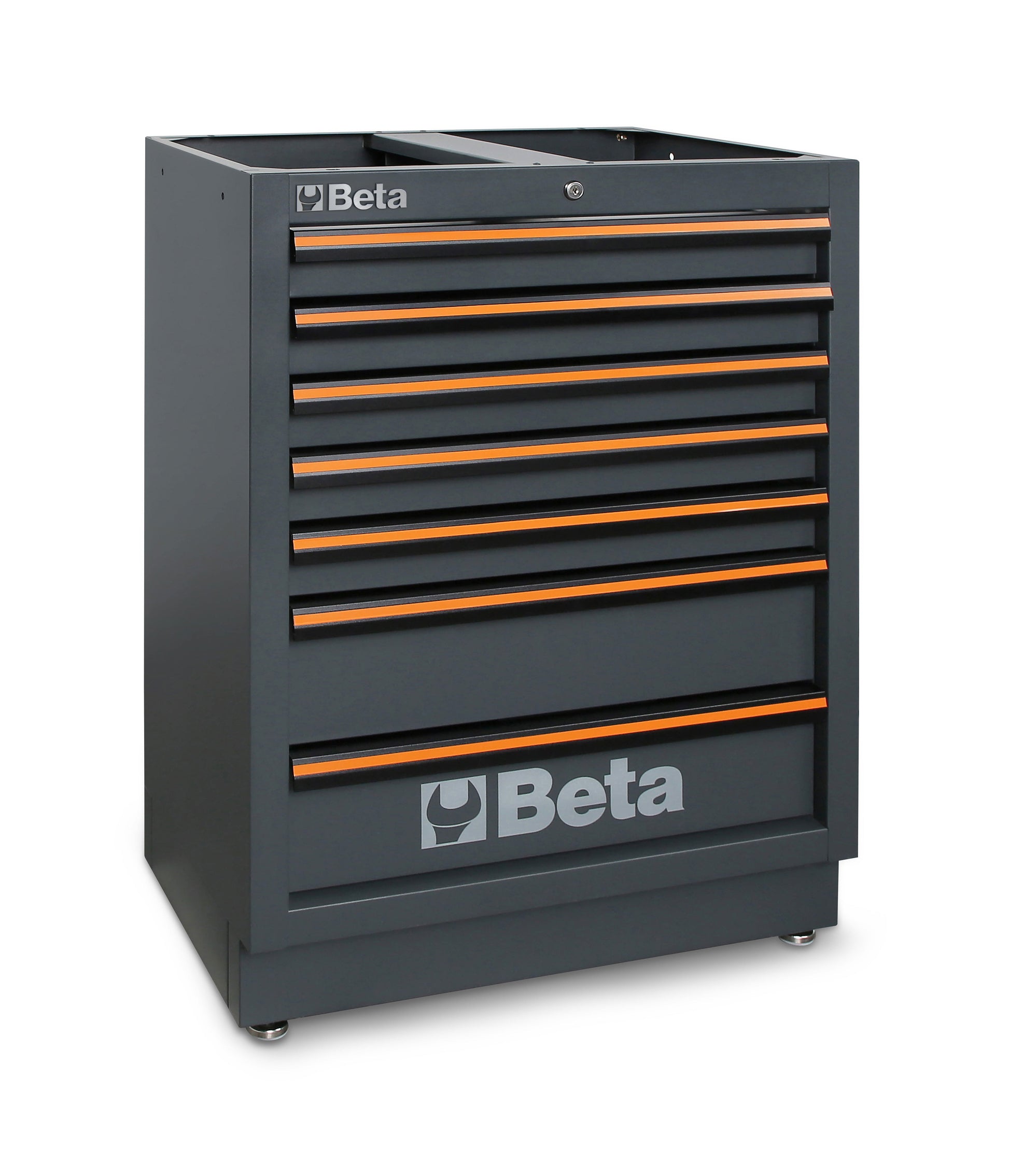

EX — 77 in. Fixed 7-drawer module with a stainless-steel-coated MDF worktop and locking storage compartment · 2 wall-mounted cabinets · 2 perforated tool panels · 3 wall brackets · Single-door cabinet

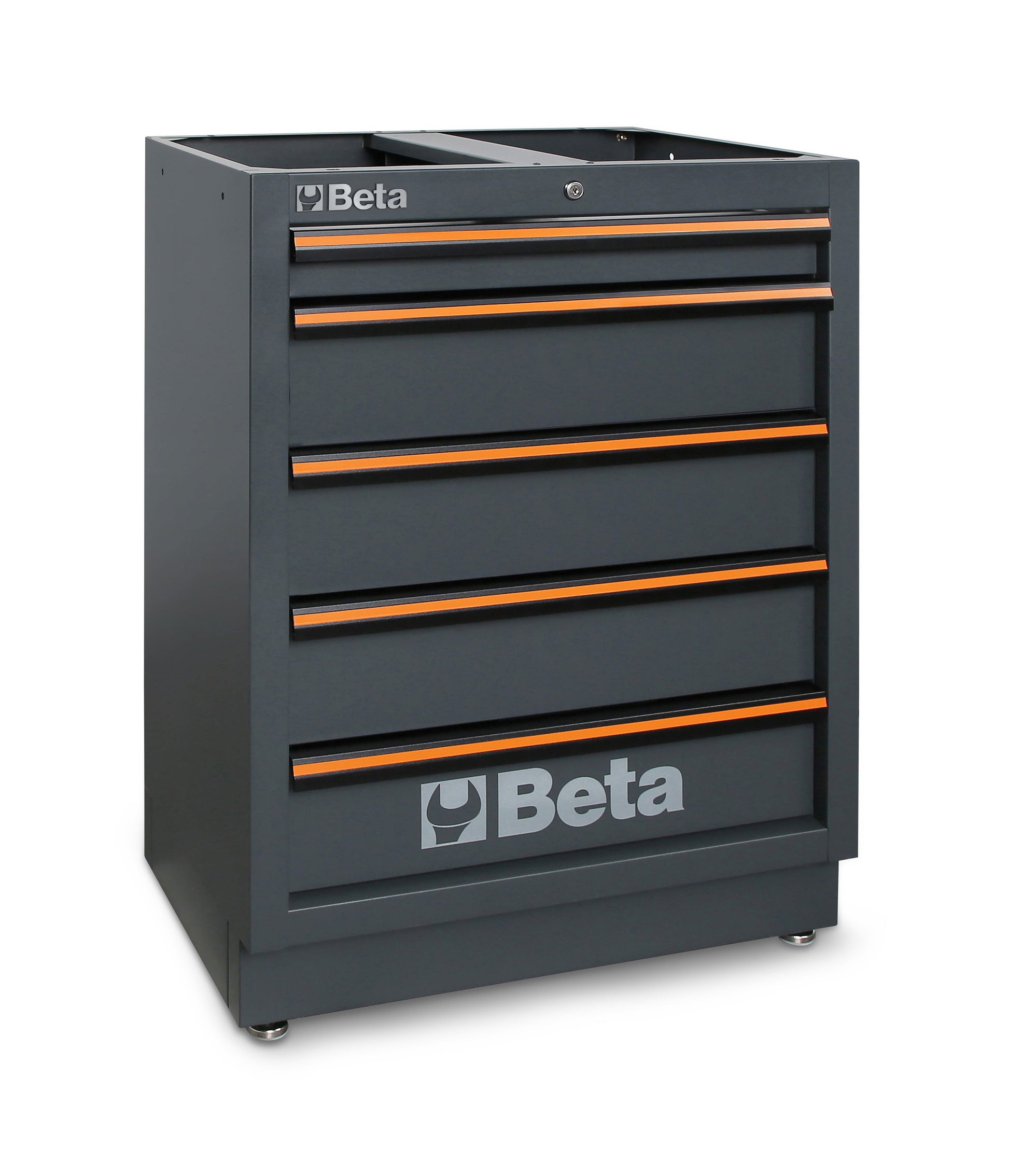

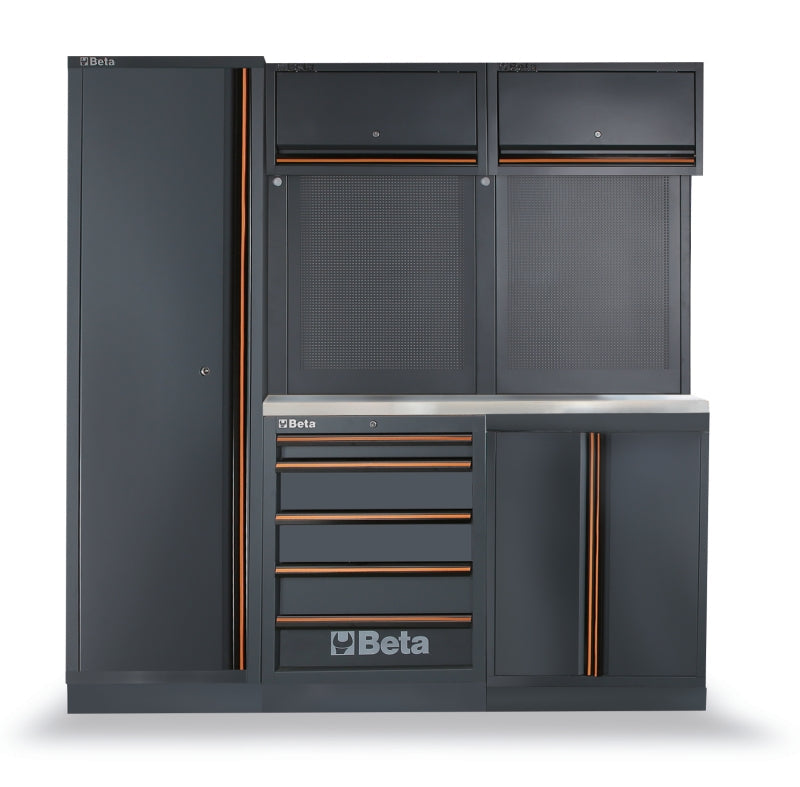

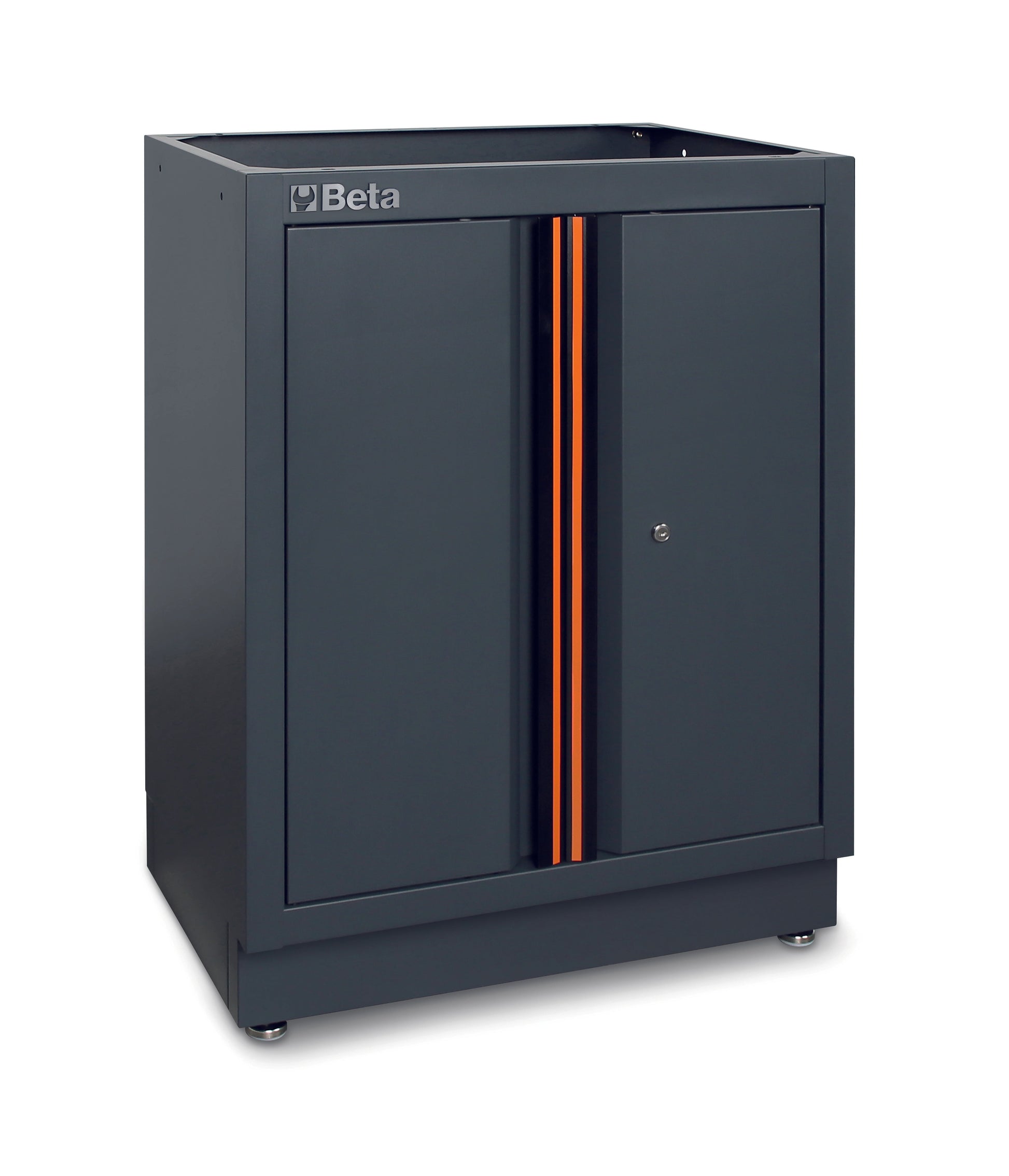

BX — 77 in. Stainless-steel-coated MDF worktop · Fixed 5-drawer module · Fixed two-door module · 2 wall-mounted cabinets · 2 perforated tool panels · 3 wall brackets · Single-door cabinet

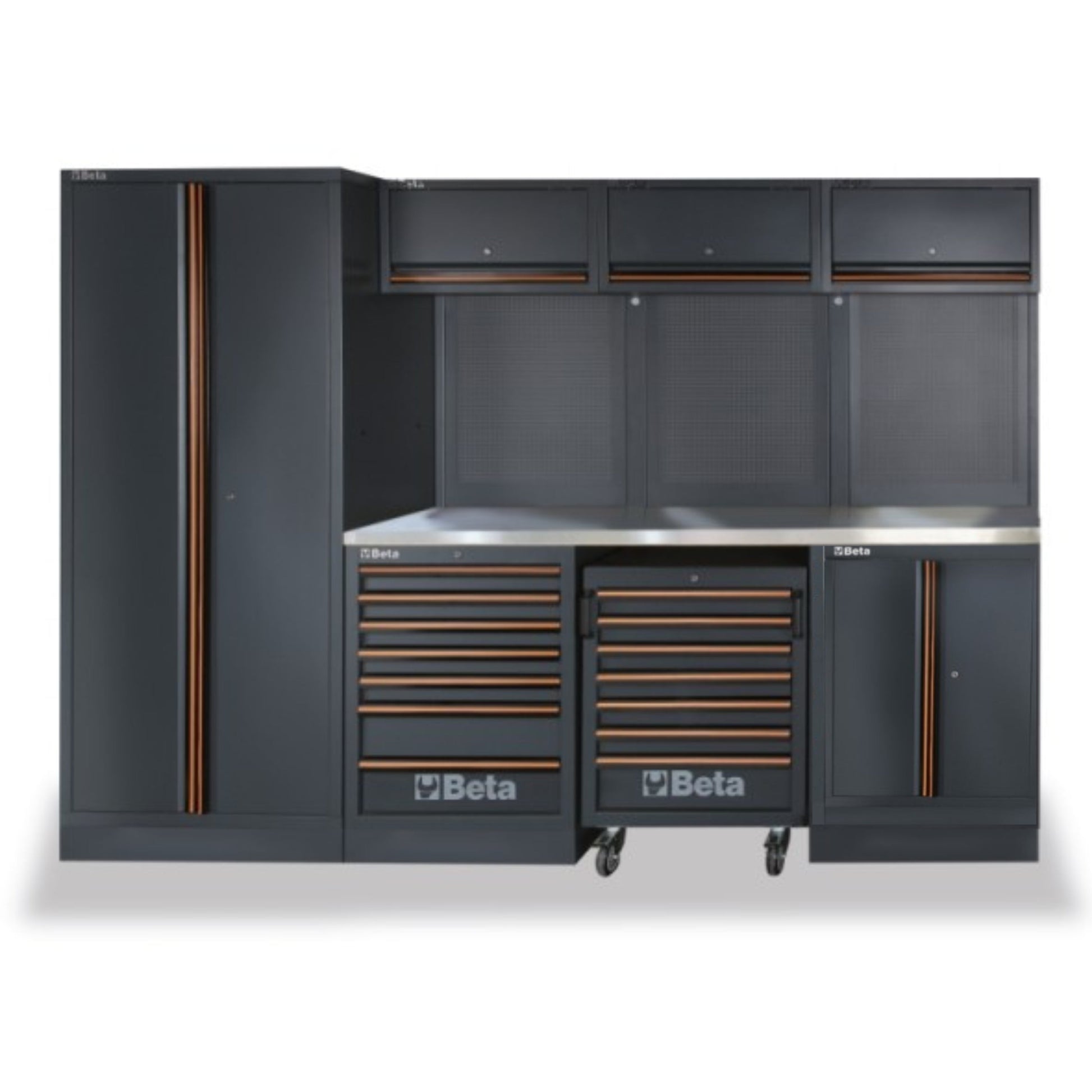

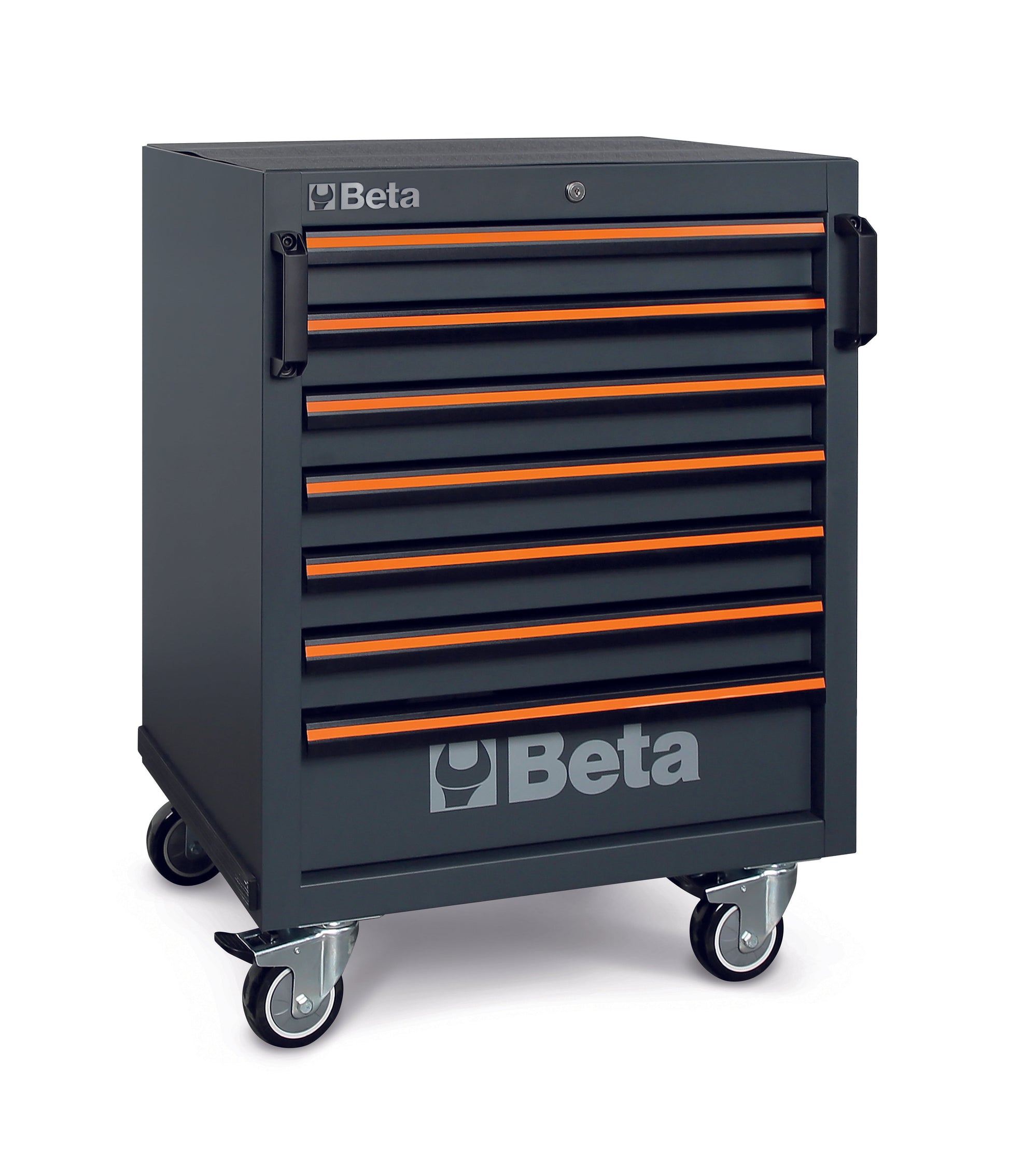

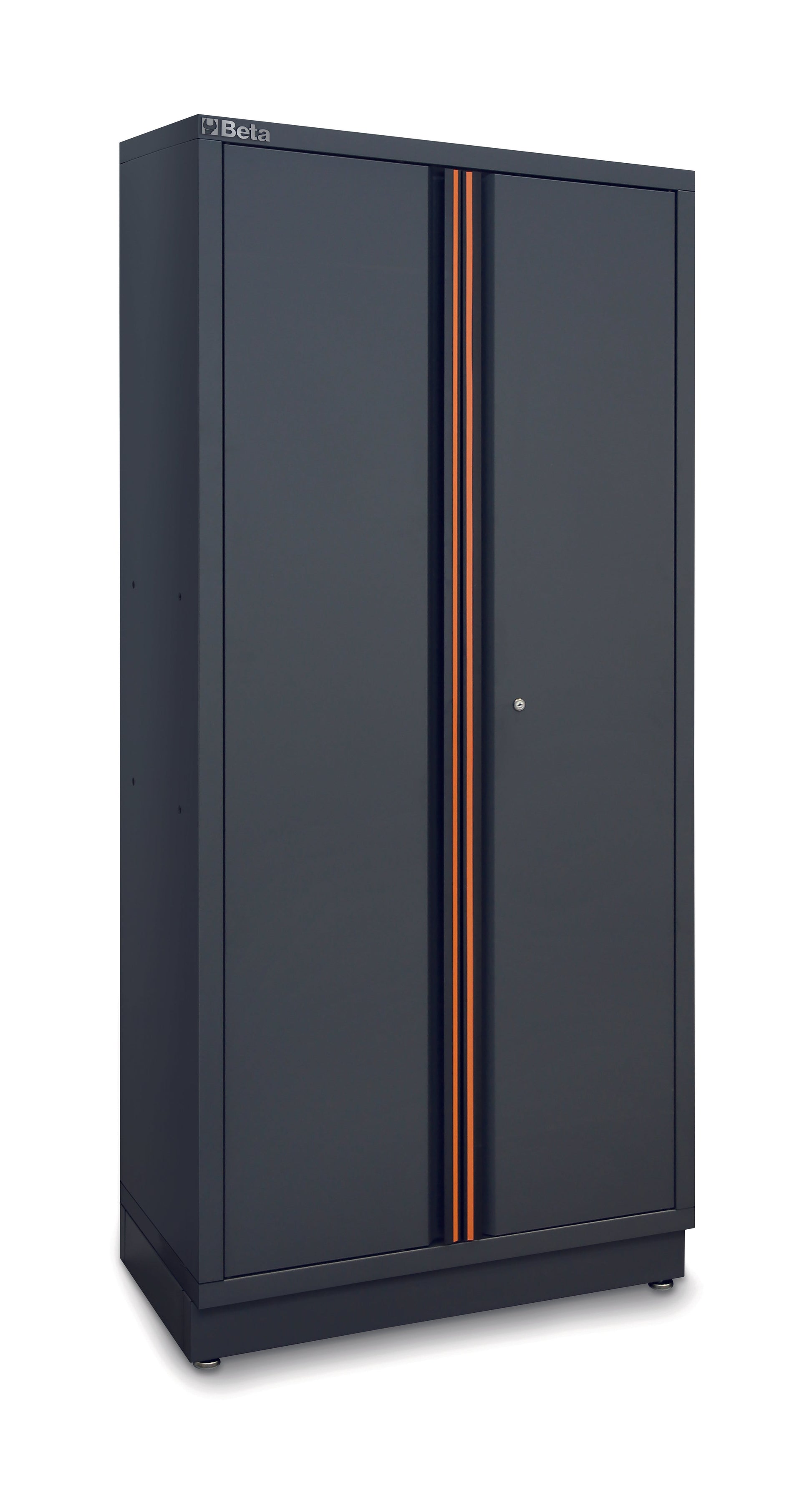

X+MA — 116 in. Stainless-steel-coated MDF worktop · Fixed 7-drawer module · 7-drawer roller cab · Fixed two-door module · 3 wall-mounted cabinets · 3 perforated tool panels · 4 wall brackets · Two-door cabinet

Product Specifications

EX and BX size 77.17 L × 19.49 D × 78.74 H in
X+MA size 116.34 L × 19.49 D × 78.74 H in
Weight before packaging EX 385 lb, BX 421 lb, X+MA 672 lb
Steel 18-gauge

Installation and Compatibility

Wall: Cabinets, panels, and brackets fix to the wall, so check that your wall can take the fixings before you order.

Generation: C45PRO 2.0 runs a 24.2 in. (615 mm) worktop on its own module set, so the two do not line up flush in a single run. Measure your existing cabinets before you order if you are matching depth.

Warranty

Term: 24 months for non-professional use and 12 months for professional use.

Not covered: Misuse, overloading past the stated static capacity, improper installation, and alterations.

Claims: Contact us first, with your order number, and we handle the claim.

Frequently Asked Questions

Can I move up to C45PRO 2.0 later?

Beta makes extension kits for that. Ask us what fits the run you own.

Shipping & returns
Freight Large and heavy items ship by freight on a pallet, delivered curbside on a liftgate truck: the carrier lowers it to the curb and does not bring it inside. Shipping cost is shown at checkout. See the curbside freight guide.
Parcel Smaller items ship by standard carrier. Full timelines are in the shipping policy.

Returns follow the stated return window — see returns & exchanges. Freight returns are arranged by our team.

Storage & Workspace · Flagship storage · Beta C45PRO

A wall, not a cabinet

One modular system in 18-gauge steel, bought as a pre-configured run and extended when the wall frees up. Three runs, one decision: how much wall you give it.

18 gaSteel throughout
19.49 in.Deep (495 mm), previous-gen
77–116 in.Worktop runs
385–672 lbBy configuration
LockableCompartments throughout
$3,373Starting configuration

Three pre-configured runs

Pick your run

Bars are drawn to scale against the 116 in. flagship run. Selecting a run sets the variant in the buy box above.

Select a run to check it against your wall and set the buy box.

Read before matching existing cabinets

Which generation this is

This listing C45PRO — previous generation 19.49 in. (495 mm) deep

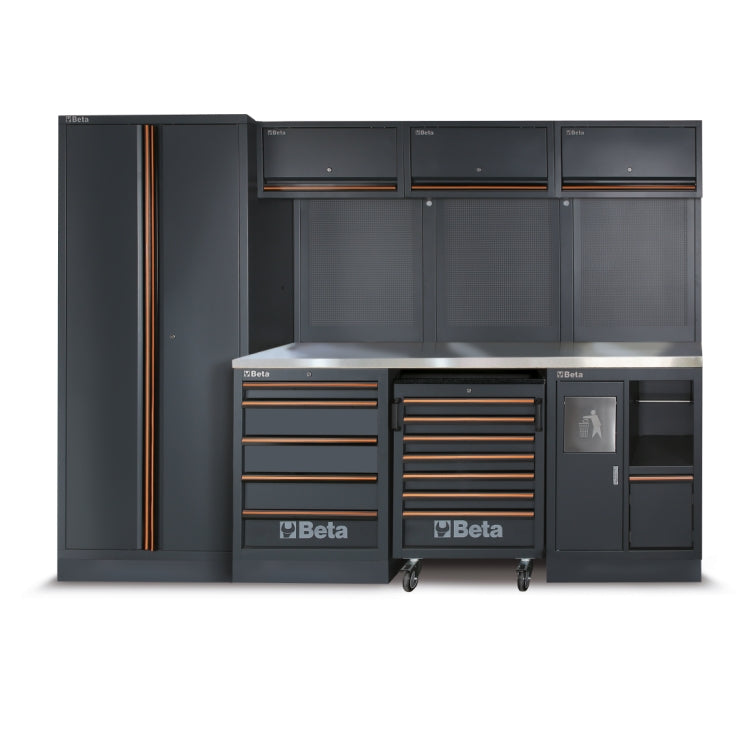

Not this listing C45PRO 2.0 24.2 in. (615 mm) deep — a 4.7 in. (120 mm) step up, with its own modules

Do not assume the two generations line up in a run. Beta’s 2.0 worktop is 24.2 in. (61.5 cm) deep against 19.49 in. (49.5 cm) here — put them side by side and you get a 4.7 in. (120 mm) step. If you are matching existing cabinets, measure their depth before you order. Read the C45PRO 2.0 specifications, or tell us what you are starting with and we will check the module list with Beta before anything ships.

Before you order

Freight, quoted — not hidden

ModeLTL freight, curbside on a liftgate truck — excluded from free shipping
WeightEX 385 lb · BX 421 lb · X+MA 672 lb, before packaging
The costFreight is calculated by weight and shown at checkout
Get the freight quote and module list Pair it with the C30M Maxi Tank

Plain answers

Should I buy this or the C45PRO 2.0?

Buy this generation if you want a shallower 19.49 in. deep run, or if you are matching existing C45PRO cabinets. It is stocked and follows our normal return terms. C45PRO 2.0 has a deeper 24.2 in. worktop, but it is a special order at 6 to 8 weeks and cannot be returned for a change of mind.

What exactly comes with each configuration?

The EX module list is on this page in full. For BX and X+MA we get Beta's full module list in writing before you order, so ask us before you pay.

How much clear wall does a run need?

The EX measures 77.17 in. long, 19.49 in. deep and 78.74 in. high, and the X+MA is a 116 in. run. Every run is 19.49 in. deep. Measure the wall, the height and any obstruction before you pick a configuration.

Does it fix to the wall?

Yes. On the EX, the wall cabinets and perforated tool panels hang on three wall brackets, so check that your wall can take the fixings before you order. We confirm the BX and X+MA module lists with Beta before you order.

How heavy is delivery?

Before packaging, the EX is 385 lb, the BX 421 lb and the X+MA 672 lb. It ships by freight to the curb on a liftgate truck, and the carrier does not bring it inside, so plan help for moving it into the garage.

Can I return it after I build it?

No. Used or installed products cannot be returned unless they are defective on arrival. Unassembled, unused and in its original packaging, it can come back within 30 days of delivery with a 25% restocking fee and return freight at your cost.
