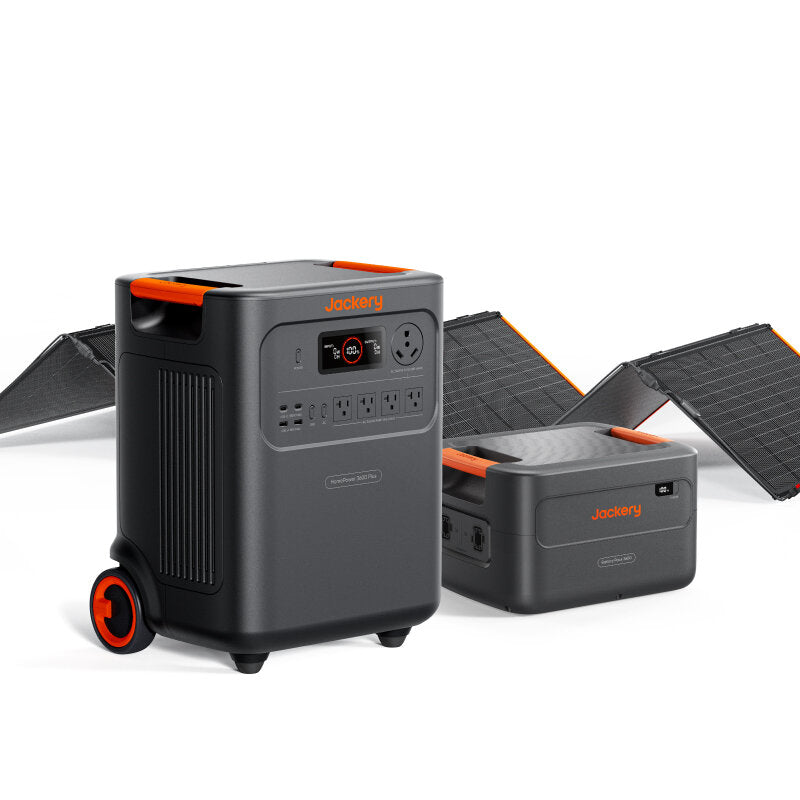

Jackery HomePower 3600 Plus with Battery Pack 3600 and SolarSaga 500X
Free shipping to the contiguous U.S.
Description
The HomePower 3600 Plus bought as a complete system: station, Battery Pack 3600, and a SolarSaga 500X panel in one order, for 7,168 Wh and 3,600 W with a solar recharge that does not need the grid.
Output stays at 3,600 W with the pack attached. If a load will not start at that figure, look at the Explorer 5000 Plus.
Shipping and Delivery
Delivery: Free within the 48 contiguous states. We do not ship to Alaska or Hawaii.
Cartons: The station and the rest of the kit can arrive in separate cartons, on different days. That is normal, so check each one on arrival.
Weight: The station is 77.2 lb on wheels, the pack is 55.1 lb, and the panel is 23.1 lb.
Key Features
Output: 3,600 W and 7,200 W surge, pure sine wave, at 120 V. One station does not make 240 V.

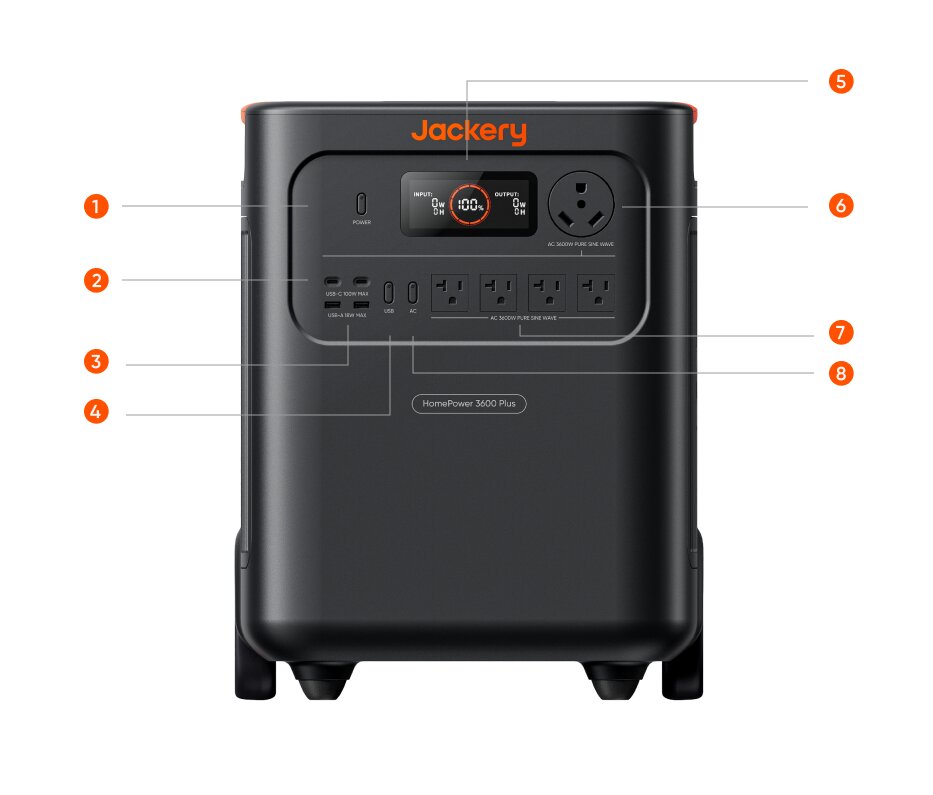

Outlets: Four 120 V, 20 A at 2,400 W each, plus one NEMA TT-30, 120 V, 30 A, at 3,600 W. Total AC output is 3,600 W.
UPS: Switches within 10 ms with the wall cable in and AC on. Output peaks at 1,440 W before an outage and returns to rated output during it. It does not support 0 ms switching, so do not use it on data servers or workstations.
Solar: The station takes up to 1,000 W, and one 500X recharges the station alone in about 12 hours.

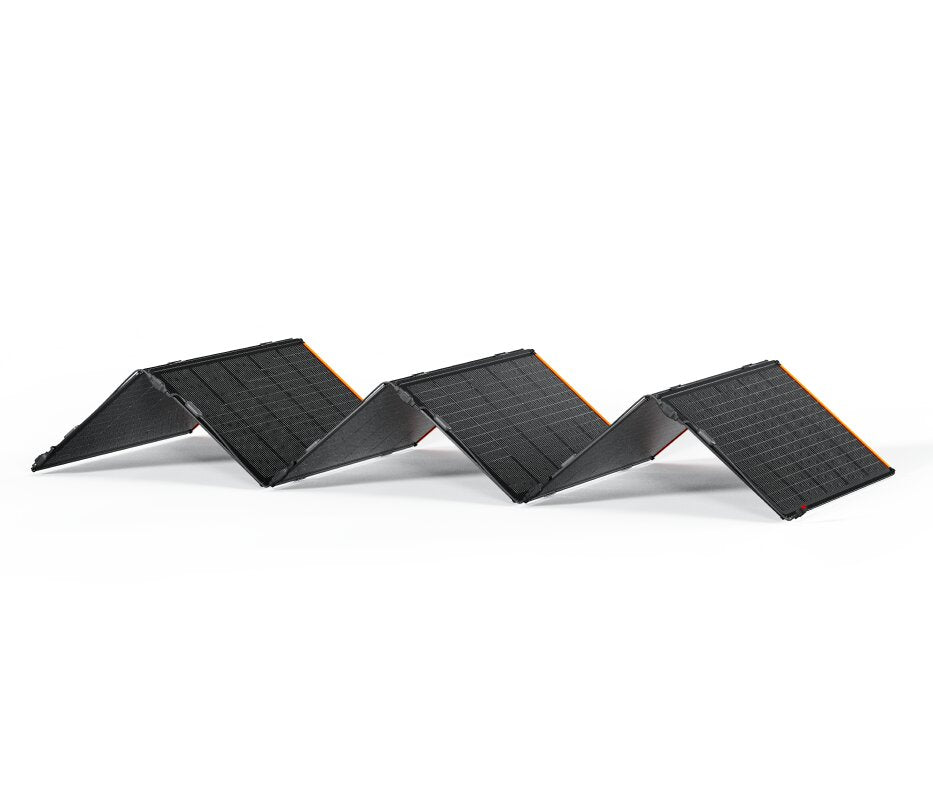

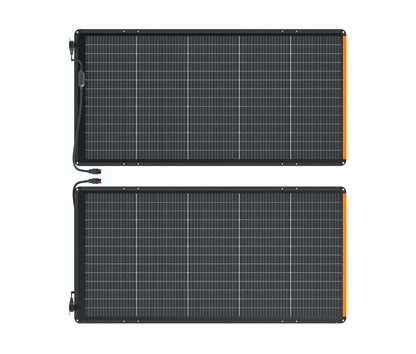

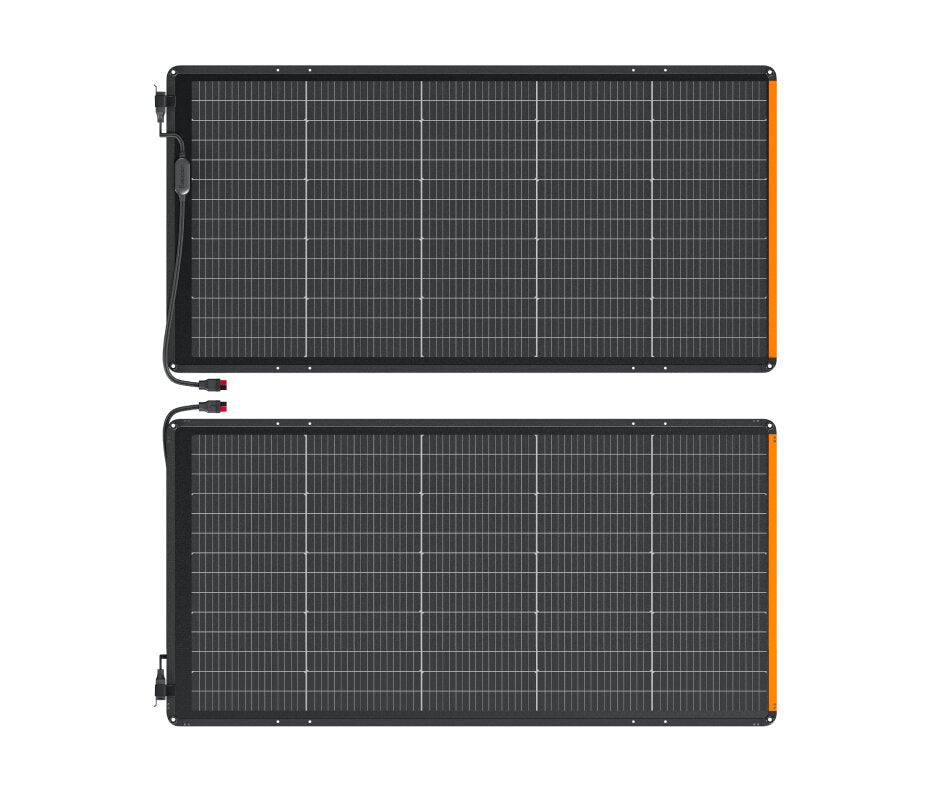

Panel: SolarSaga 500X, rated 500 W and 545 W in bifacial test conditions. It is IP68, but do not immerse it.
Expansion: Up to four more Battery Pack 3600 units on top of this one, for 21.48 kWh.
Product Specifications
| Capacity | 3,584 Wh LiFePO4, rated 6,000 cycles to 70%+ capacity |
| USB | 2 × USB-C 100 W, 2 × USB-A 18 W |
| AC input | 100–120 V, 15 A maximum, 1,800 W |
| AC recharge | 2.5 hours, station alone |
| Temperature | Charge and discharge -4°F to 113°F |
| Noise | 30 dB Quiet Mode, 50.3 dB full load, at 1 m |
| Size | 15.2 × 12.2 × 19.3 in |
| Weight | 77.2 lb |

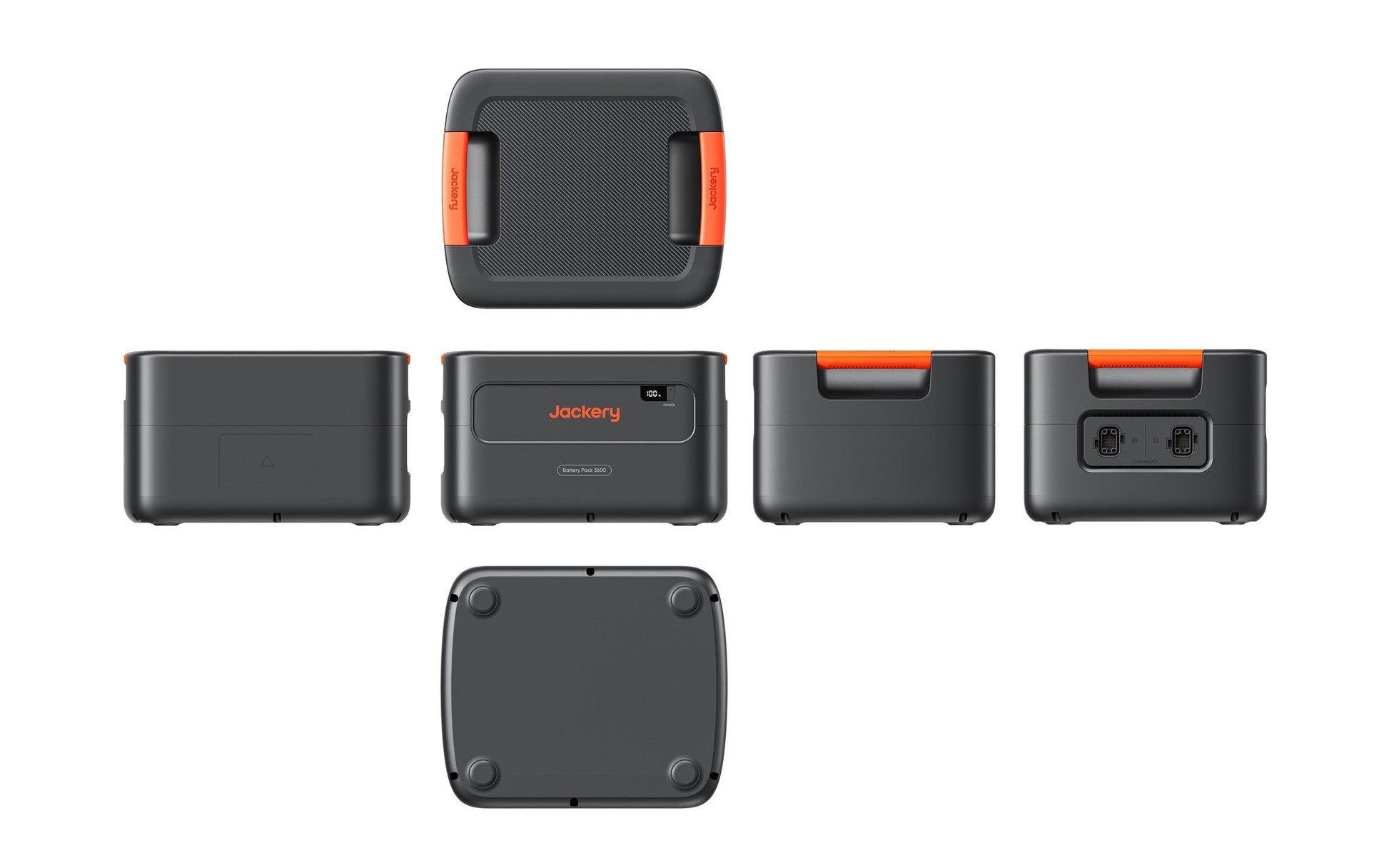

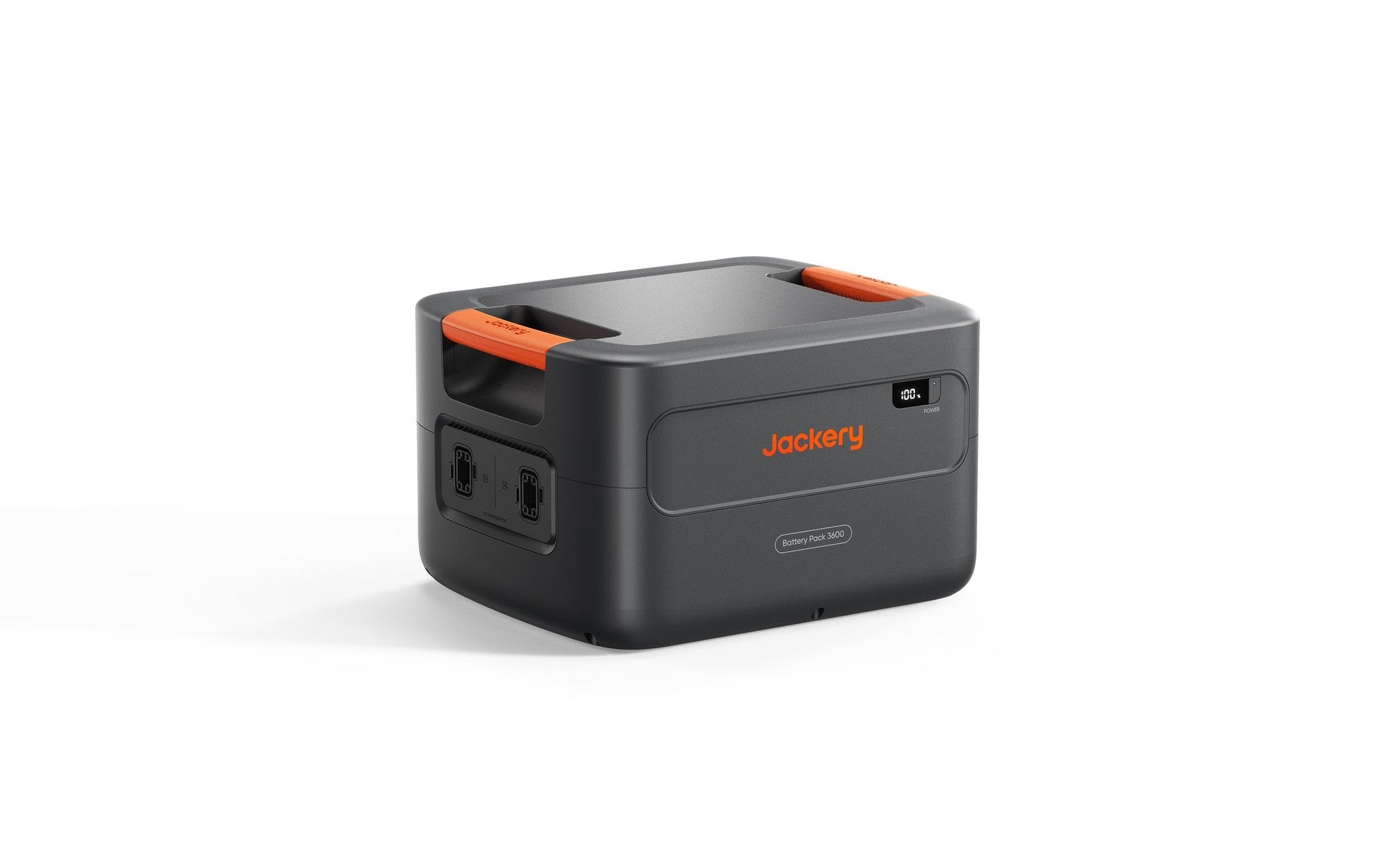

| Battery Pack 3600 | 3,584 Wh, 14.8 × 12.5 × 9.0 in, 55.1 lb |
| SolarSaga 500X | 39.2 × 20.7 × 3.8 in folded, 98.1 × 39.2 × 11.6 in open, 23.1 lb |
| Certification | UL 1973, SGS certificate SGSNA/25/SZ/00339U |
What's Included

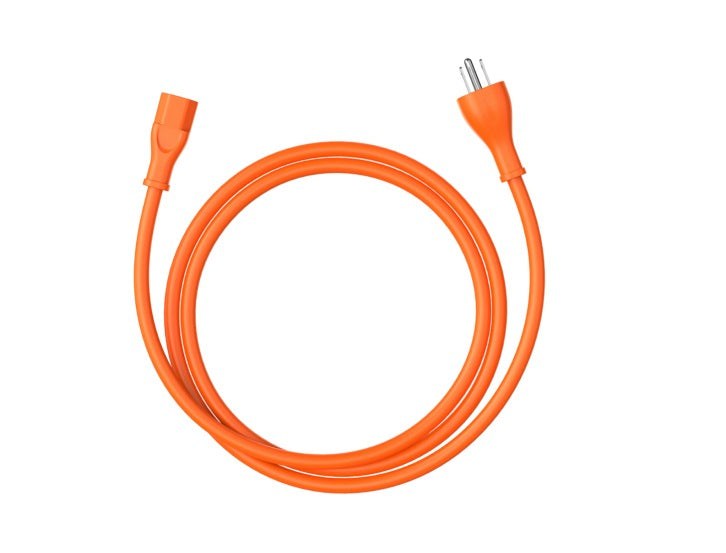

In the box: HomePower 3600 Plus, AC charging cable, Battery Pack 3600, expansion cable, and a SolarSaga 500X set with panels, hinges, screws, ground stakes, a 16.4 ft charging cable, and a storage bag.
Installation and Compatibility
Connecting the pack: One expansion cable, in the pack's box, with every unit off first. Do not stack the pack on the station.
Where it runs: Indoor use only. It is not waterproof or dustproof, and it stays upright with 7.9 in. (200 mm) clear on both sides.
In a shop: During operation in a workshop or repair facility, do not place it on the floor or less than 18 in. above the floor.
Panel use: Retract it in strong wind, hail, and other severe weather. It is not intended for permanent installation.
Warranty
Term: 3 years from the date of purchase, for the original purchaser, with proof of purchase.
Panel: The SolarSaga 500X has a 5-year limited warranty covering normal power generation. Surface discoloration, fabric wear, and normal wear are not covered.
Extension: Jackery sells a paid 2-year extension for units bought through its authorized US channels. Activate it within 30 days of buying it.
Not covered: Misuse, abuse, modification, accident, use beyond normal consumer use, repair by an unauthorized party, and units bought through an online auction.
Battery condition: Fully charge the unit within 7 days of purchase and at least once every 6 months, or the battery cell falls outside the warranty.
Claims: Contact us first, with your order number and the serial number.
Frequently Asked Questions
Does the pack need its own charger?
No. It charges through the station, from the wall or from solar.
Can I run it through a transfer switch?
Yes. The 120 V, 30 A Manual Transfer Switch works with this station, and a qualified electrician has to install it.
Shipping & returns
Returns follow the stated return window — see returns & exchanges. Freight returns are arranged by our team.
Lithium battery shipments travel by ground only, never air, and can carry destination restrictions. Feeding household circuits through a transfer switch needs a licensed electrician and, in most places, a permit and inspection.
Station, pack and panel
Duration and recharge, bought as one decision
A HomePower 3600 Plus with its Battery Pack 3600 and a SolarSaga 500X panel: 7,168 Wh of storage, 3,600 W of output and a real solar recharge in a single order. The pack is what carries a long outage; the panel is what makes day two possible.
In the kit
- HomePower 3600 PlusPower station3,584 Wh base unit; every outlet and input lives here.
- Battery Pack 3600Capacity expansionA second 3,584 Wh. No outlets of its own — it stores and releases through the station. Up to 5 packs per station, 21.48 kWh maximum.
- SolarSaga 500X500 W folding panel500 W rated (545 W BNPI).
Full specifications
| System capacity | 7,168 Wh — station 3,584 Wh + Battery Pack 3600 3,584 Wh (LiFePO4) |
|---|---|
| Continuous AC output | 3,600 W |
| Surge / peak output | 7,200 W |
| UPS transfer time | 10 ms |
| Solar input | 1,000 W station maximum; the included 500X supplies up to 500 W (545 W BNPI) |
| Battery Pack expansion port | 36.4–50.4 V · 60 A max in / 100 A max out |
| Cycle life | 6,000 cycles to ≥70% capacity (all components) |
| Combined weight | About 155.4 lb / 70.5 kg (a calculated sum of the three component weights, not a weighed shipment) |
| Panel | SolarSaga 500X — 500 W (545 W bifacial), IP68, 23.1 lb |
| Component weights | Station 77.2 lb; pack 55.1 lb; panel 23.1 lb |
| Warranty | 3 years per component |
The pack extends how long the system runs; it does not raise what it can run at once — output stays governed by the station at 3,600 W continuous. If your problem is runtime, add packs; if a load will not start, more packs will not change that.
The combined weight is a sum of individually published component weights. Jackery does not publish a combined shipping weight for this kit.
Who it is for
For the outage that runs into day two
This is the 3600 Plus bought as a complete system: station, expansion battery and a 500 W panel in one order. The pack is what carries a long outage, and the panel is what makes day two possible. It extends how long the system runs, not what it can run at once. Output stays at 3,600 W.
7,168 Wh from day one
The Battery Pack 3600 doubles the bank, with room for four more packs and a 21.48 kWh ceiling.
500 W of solar
The SolarSaga 500X covers half the station's 1,000 W solar input, and supplies up to 545 W in bifacial conditions.
10 ms UPS
Station output of 3,600 W continuous and 7,200 W surge.
UL 1973
UL 1973, SGS North America certificate SGSNA/25/SZ/00339U.
Plain answers
Will the battery pack let me run bigger loads?
No. If your problem is runtime, add packs. If a load will not start, more packs will not change that.
Can I add more later?
Yes. Up to five packs per station, for 21.48 kWh.
How much does it weigh?
Station 77.2 lb, pack 55.1 lb, panel 23.1 lb. That is about 155.4 lb combined, a calculated sum rather than a shipping weight.
Before you order
Free shipping within the 48 contiguous states.
3 years per component. Returns are handled under our return and refund policy.
