Sommer Rail Extension 24 in. — for evo+ and pro+ Openers

This 24 in. rail extension suits a 10 ft door with one, or a 12 ft door with two, on Sommer evo+ and pro+ openers. The reach depends on the track.

The standard rail opens doors from 7 ft 3 in to 8 ft 3 in, depending on the track. The figures are general. The installer confirms the opening on site.

Shipping and Delivery

Delivery: Flat $12 on orders under $100, and free at $100 or more, within the 48 contiguous states. We do not ship to Alaska or Hawaii.

Key Features

Rail: 24 in. of 1.25 mm steel with hemmed edges and a full end at the joint.

Sleeve: A 16.25 in. connecting sleeve.

Chain: Nickel-plated.

Product Specifications

What's Included

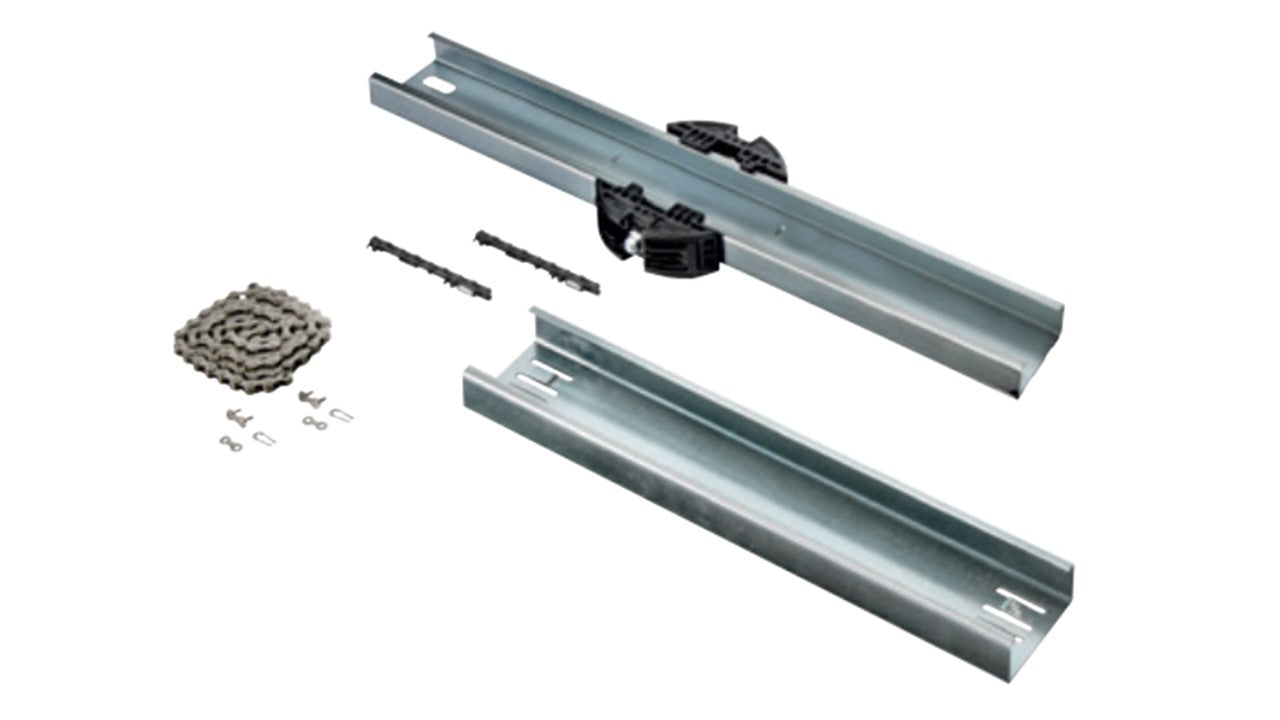

In the box: 24 in. rail, connecting sleeve, chain, master link, magnetic isolator, and ceiling bracket.

Installation and Compatibility

Works with: Sommer evo+ and pro+ openers.

Brackets: A door under 400 lb takes one ceiling bracket for every three rail sections, and a door over 400 lb one for every two. Perforated angle for the ceiling bracket is sold separately.

Tall doors: Over 8 ft, drum and spring size also affect how far the door opens.

Measuring: Measure radius from the track splice to the center of the horizontal track.

Does not fit: Synoris or Duo Vision openers.

Prop 65: WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Warranty

Term: 2 years.

Not covered: Batteries, programming of remote devices, normal wear, and damage from misuse.

Claims: Contact us first, with your order number.

Frequently Asked Questions

Can I use more than two?

The height chart stops at two 24 in. extensions. The 43 in. extension is the route to taller doors.

Does it raise the weight rating?

No. It adds door height only.
