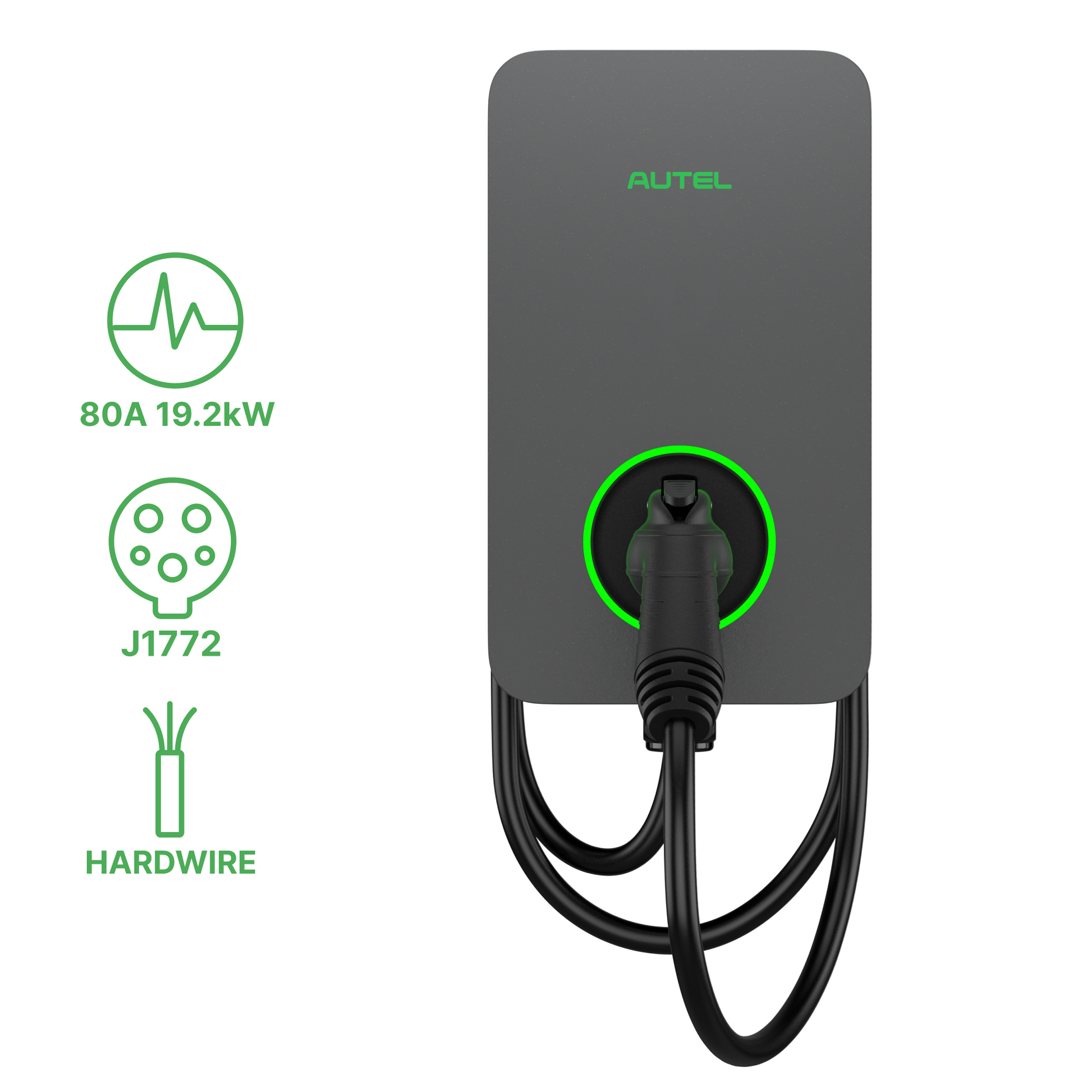

Autel MaxiCharger 80A — 19.2kW Level 2 EV Charger, 5-Year Warranty
Description
The Autel MaxiCharger 80A is Autel's fastest home charger: 19.2 kW at 240 V, adding up to 70 miles of range per hour of charging, or about 140 miles in two hours on a compatible EV. It suits two EVs, a long-range truck, or a vehicle that has to be full every morning.
It is hardwired on a 100 A circuit, adjusts down to 16 A in steps, and carries a 5-year warranty that replaces the charger rather than repairing it.
Shipping and Delivery
Delivery: Free standard shipping within the 48 contiguous states. We do not ship to Alaska or Hawaii.
Dispatch: It ships from Autel, usually the next business day. The delivery estimate shows at checkout, along with an express option.
At delivery: Check the box and the charger before you sign, and contact us within 48 hours with photos if anything arrives damaged.
Key Features
80 A, 19.2 kW: Up to 70 miles of range per charging hour.
Set it for your circuit: 16, 24, 32, 40, 48, 50, 64, 72 or 80 A, changed in the app as your vehicle or installation allows.

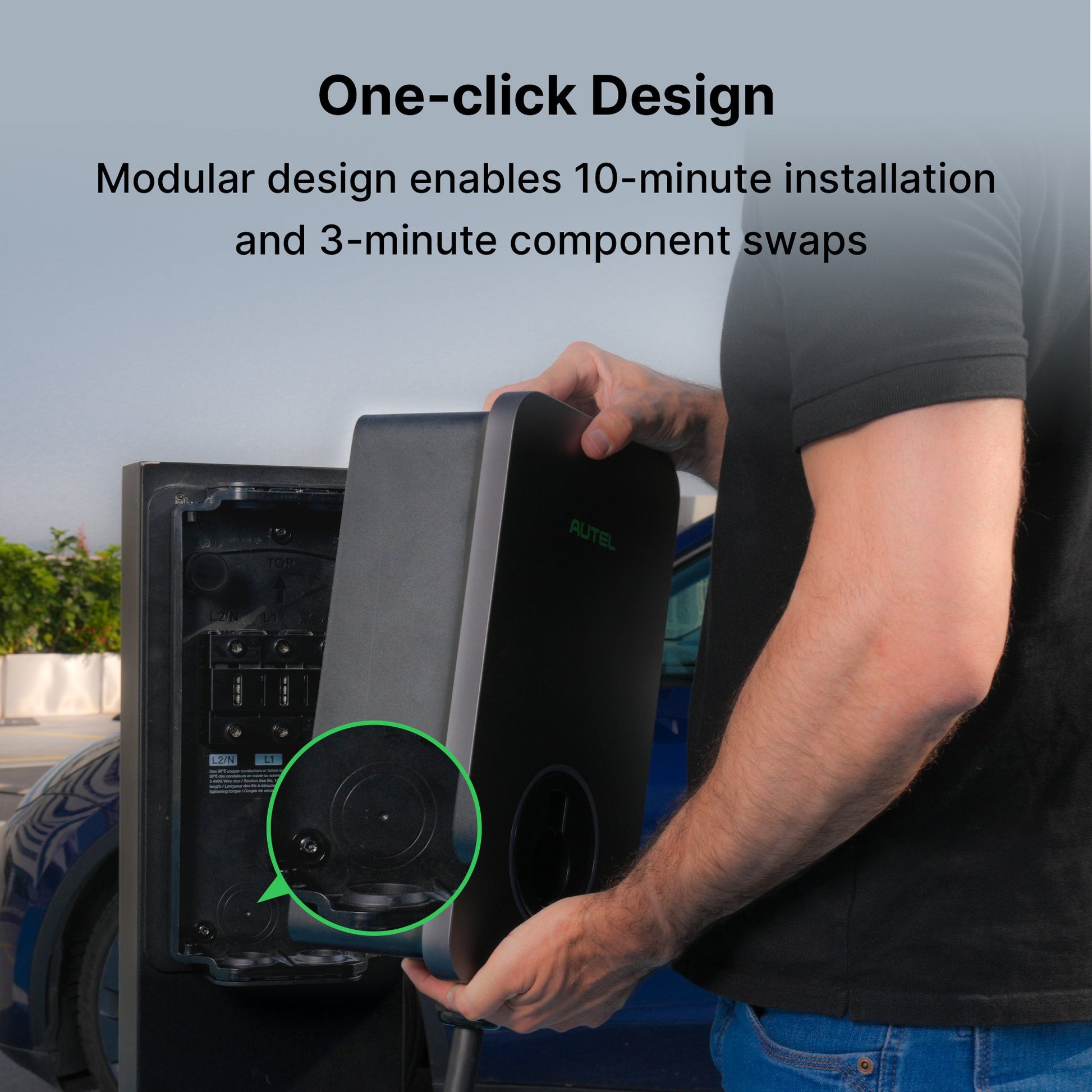

One-click design: A user-replaceable main unit clicks onto a separate wiring box, so connections stay accessible for maintenance.
Load management: Supports Adaptive Load Management (ALM), which needs extra compatible hardware, and Dynamic Load Balancing (DLB) between two chargers, which needs none.
Connected three ways: Wi-Fi, Bluetooth and Ethernet, with notifications, charging history and shared access in the Autel Charge app.
Indoors or out: IP65 / NEMA 4X enclosure, and a cable that stays flexible in cold weather.
Long life: A 10-year design service life, backed by a 5-year warranty.
Product Specifications
| Output | 19.2 kW at 240 V, 80 A |
| Charging speed | Up to 70 miles of range per hour |
| Adjustable current | 16 to 80 A |
| Current settings | 16, 24, 32, 40, 48, 50, 64, 72, 80 A |
| Input | 208/240 V AC, 50/60 Hz |
| Connector | SAE J1772 |
| Cable length | 25 ft (7.5 m) |
| Installation | Hardwired, main unit on a separate wiring box |
| Circuit for full output | 100 A |
| Mounting | Wall |
| Environment | Indoor or outdoor |
| Connectivity | Wi-Fi, Bluetooth, Ethernet |
| Load management | ALM (extra hardware) and DLB |
| Enclosure | IP65 / NEMA 4X |
| Ground-fault detection | 20 mA CCID |
| Protection | Overcurrent, overvoltage, undervoltage, overtemperature, surge |
| Dimensions | 14.5 x 8.5 x 5.1 in |
| Package weight | About 20.3 lb |
| Design service life | 10 years |
| Warranty | 5 years, replacement |
What's Included
In the box: The main unit with its 25 ft J1772 cable, the wiring box, a quick reference guide, amperage labels and mounting accessories.
Installation and Compatibility
Hardwired only: There is no plug at 80 A. The charger lands on a dedicated circuit.
Circuit: Full 80 A output needs a 100 A circuit, and your panel and service have to carry it. Have a licensed electrician size the breaker and conductors before you order.
Lower settings: If the panel cannot spare 100 A, the charger can run at a lower setting on a smaller circuit, sized at 125% of the current you set.
Permits: High-amperage EV circuits are normally permitted and inspected work. Check local requirements early.
NACS vehicles: A Tesla or other NACS vehicle charges through a compatible J1772-to-NACS AC adapter, which is not included.
Detached garage: If Wi-Fi does not reach the charger, run an Ethernet cable while the walls are open.
Rebates: Utility and state EV charger rebates vary by area. Check your provider's current program before you order.
Warranty
Term: 5 years from the date of purchase, against defects in materials and workmanship, for chargers used in the US.
Replacement: The warranty covers the charger body, backplate and internal components, and a defective unit is replaced rather than repaired.
Not covered: Misuse, accidents, lightning and other storm damage, repairs or changes not made by Autel, installation or use against the manual, use outside normal home charging, and normal wear.
Claims: Keep your order confirmation. Contact us first with your order number and a description of the fault, and we take the claim to Autel. Autel repairs the charger or replaces it with one of equal specification, which may be refurbished.
Returns: Within 30 days of delivery, unused and in the original packaging, under our return and refund policy.
Frequently Asked Questions
What circuit does it need?
A 100 A circuit for the full 80 A. A licensed electrician should confirm your panel and service can carry it.
Can I run it lower until I upgrade my panel?
Yes. Set it to 16, 24, 32, 40, 48, 50, 64 or 72 A in the app, on a circuit sized at 125% of that current.
How much faster is it than a 50 A charger?
It adds up to 70 miles of range an hour, against up to 48 for Autel's 50 A home chargers, on a car that accepts the power.
Will it charge my Tesla?
Yes, through a compatible J1772-to-NACS AC adapter, which is not included. For no adapter at all, the AC Lite Home NACS has the NACS connector built in.
Shipping & returns
Returns follow the stated return window — see returns & exchanges. Freight returns are arranged by our team.
Why this charger earns its place
- Max output at 80A
- 19.2 kW
- Faster than 120V, per Autel
- 14X
- Hardwired connector
- J1772
- Autel warranty
- 5 years
-

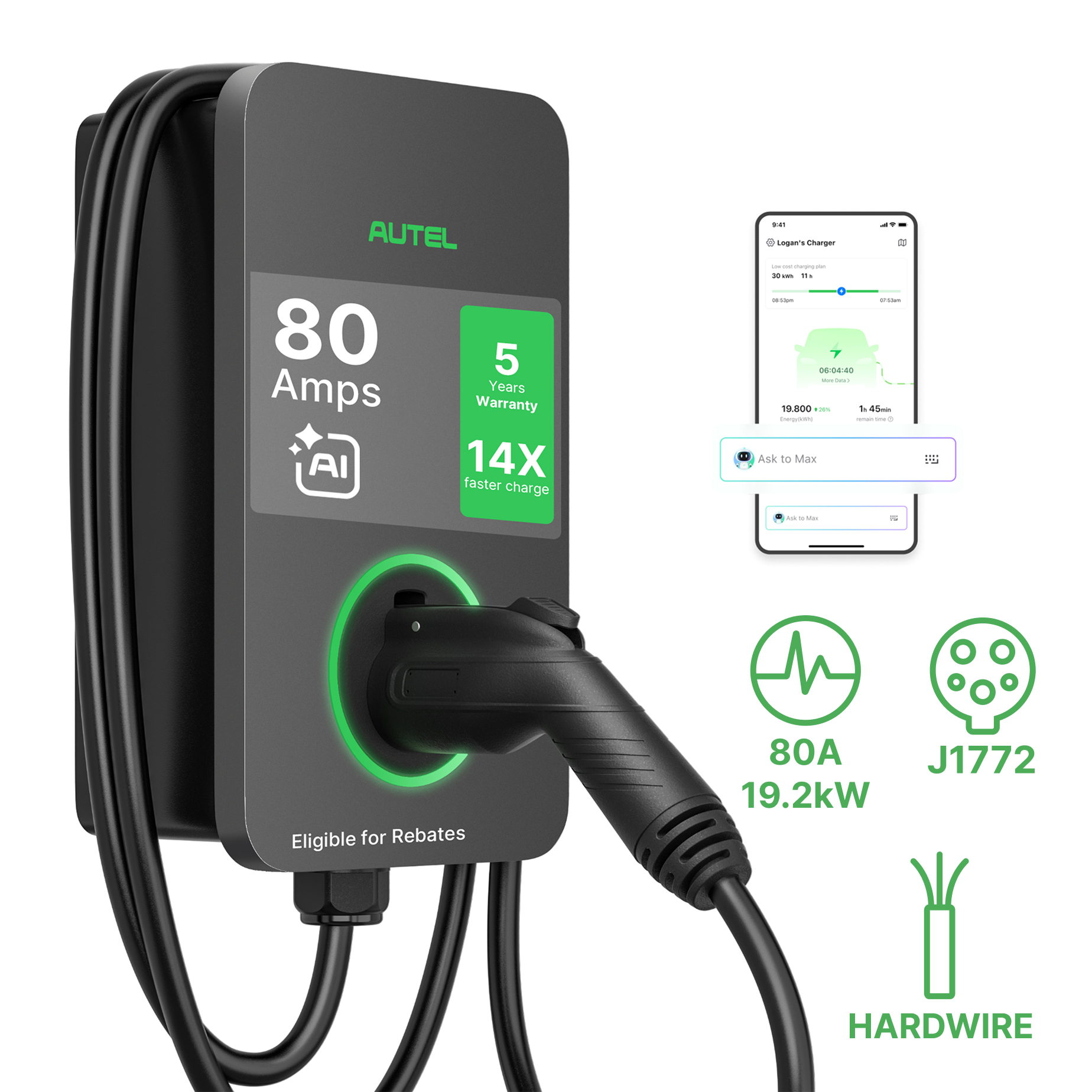

80A hardwired, 19.2 kW
The most output a home Level 2 circuit can deliver
-
14X faster than a wall outlet
Autel rates it up to 14x a 120V socket
-
Adaptive current sharing
Reads household demand, distributes what is left
-
Plug and charge, AutoCharge
Your car is recognized the moment you connect
-
Dual network backup
Wi-Fi with a Wi-SUN mesh path behind it
-
One-click modular build
About ten minutes to fit, three to swap a part
Built for the long haul
Four reasons an 80A Autel is a different animal
-

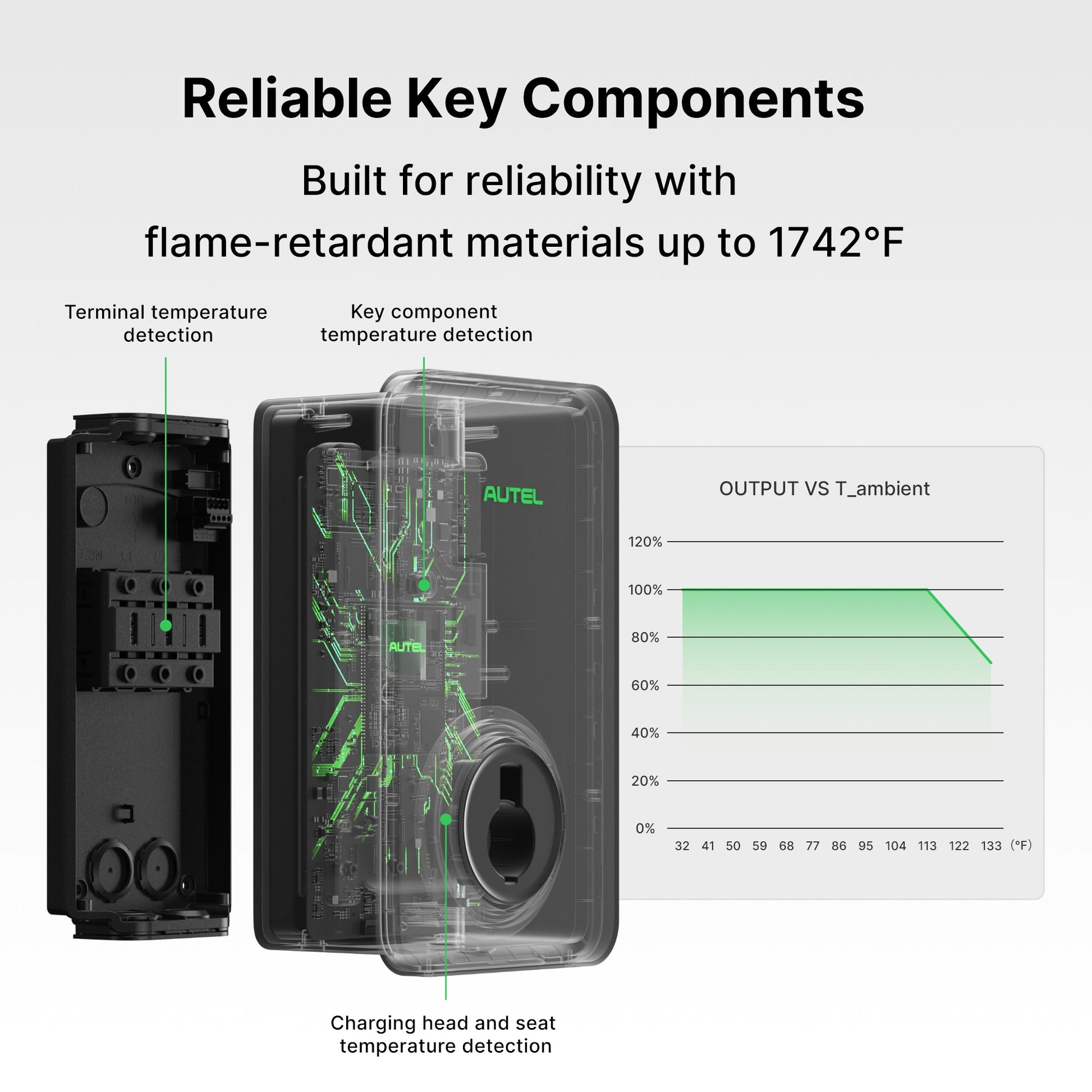

Engineered for heat, not just for speed
Autel builds the MaxiCharger from flame-retardant materials rated to 1742°F, and monitors temperature at the terminals, the key internal components and the charging head and seat. If a reading climbs, output steps back before anything is damaged.
Flame-retardant construction, per Autel
-

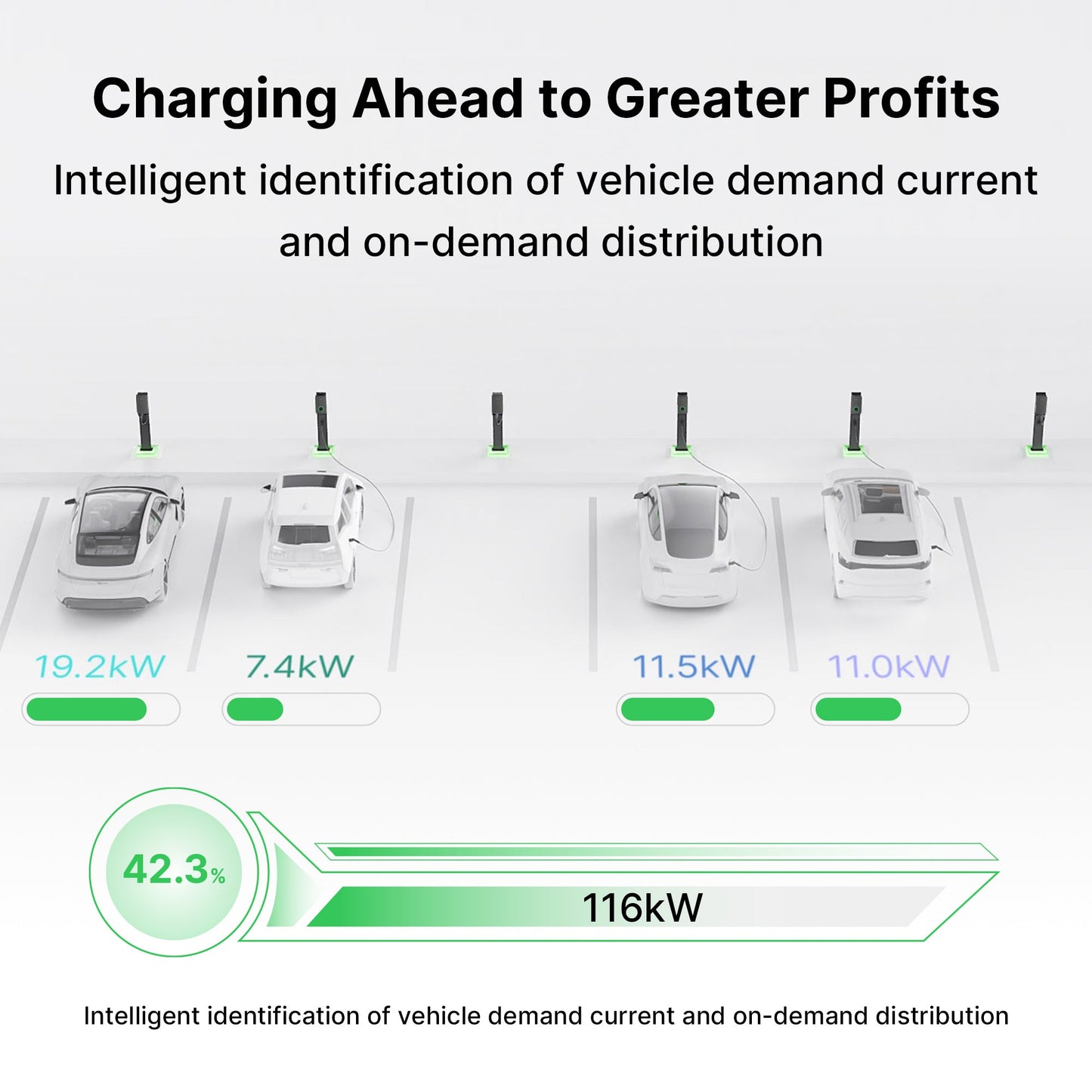

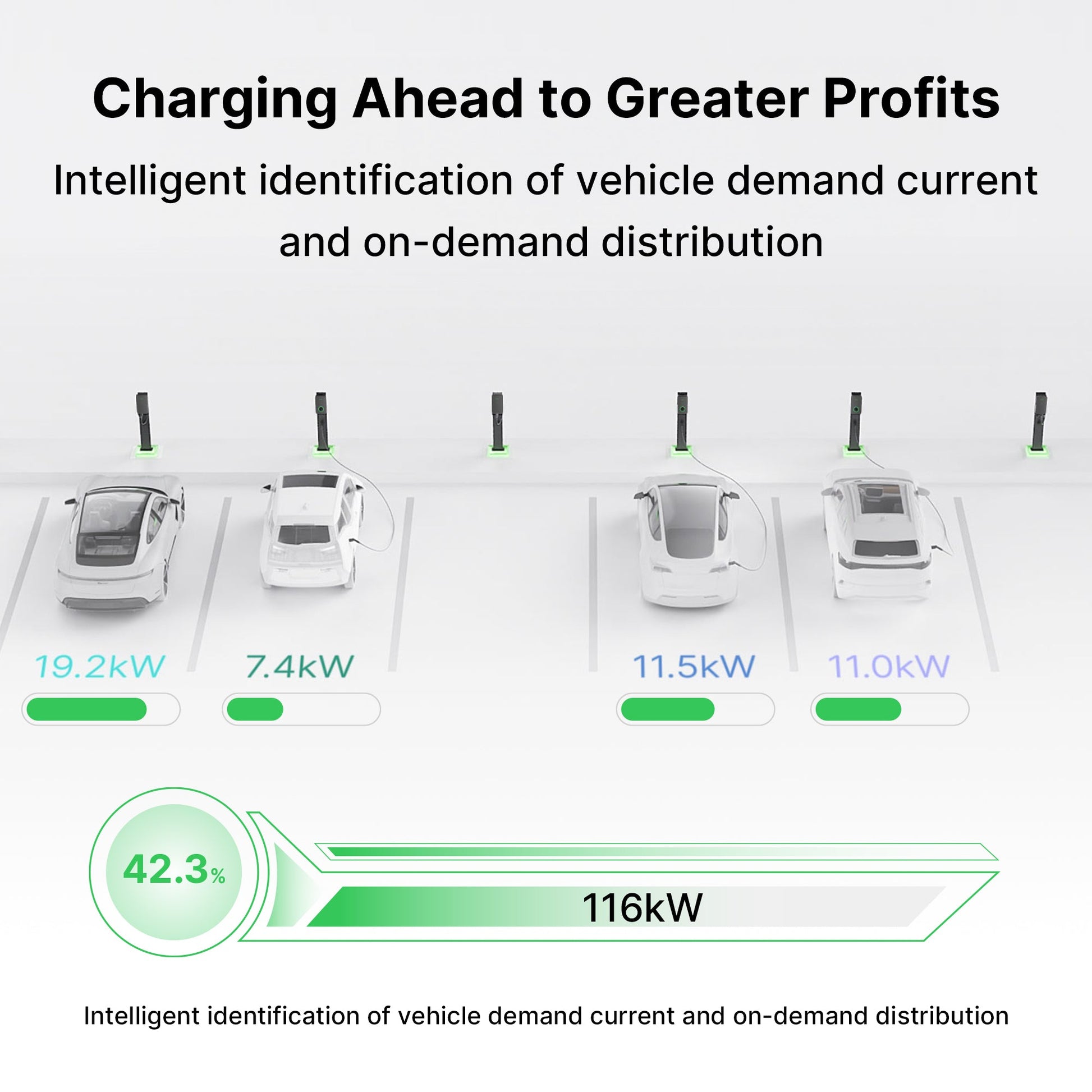

Shares the panel instead of fighting it
Intelligent demand-current identification reads what the rest of the house is already drawing, then distributes what is left to the car. You get the fastest charge your service can support without nuisance trips.
On-demand current distribution
-

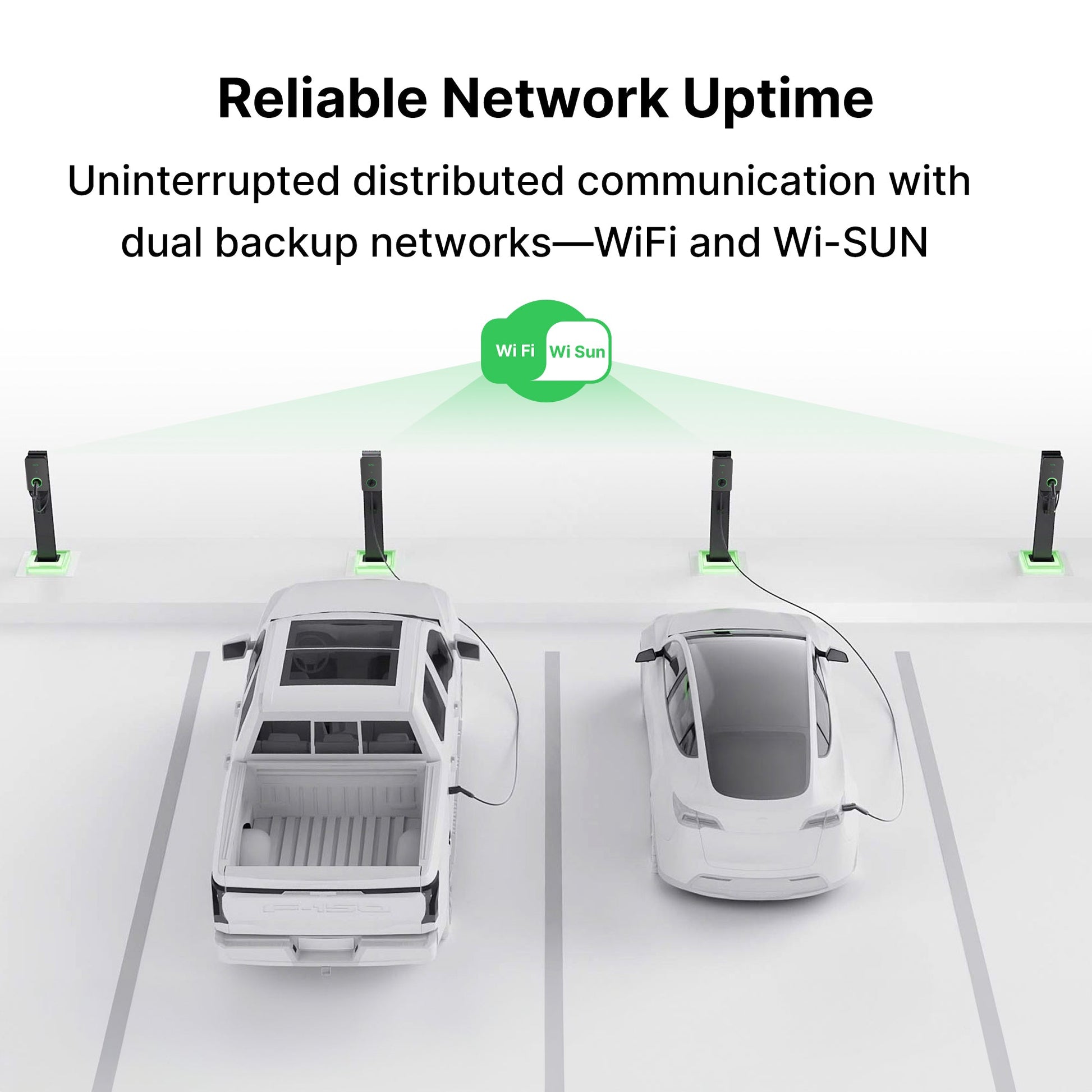

Two independent ways to stay online
Wi-Fi is the primary link and a Wi-SUN mesh network sits behind it as a backup, so a dropped router does not mean a dropped schedule or a lost charging record.
Wi-Fi plus Wi-SUN dual network
-
Plug it in and it simply starts
Plug and Charge and AutoCharge let the station recognize your vehicle the moment the connector seats, so there is no app to open and no card to tap on a cold morning.
PnC and AutoCharge supported
How the 80A compares
The Autel MaxiCharger 80A against the usual alternatives
| Feature | Autel 80A | 48A Level 2 | 120V Level 1 |
|---|---|---|---|
| Maximum output | 19.2 kW | 11.5 kW | 1.4 kW |
| Speed versus a 120V outlet | About 14x | About 8x | Baseline |
| Circuit it needs | 100A dedicated | 60A dedicated | Standard outlet |
| Adjustable output current | Yes | Yes | No |
| On-demand load sharing | Yes | Model dependent | No |
| Plug and Charge, AutoCharge | Yes | Model dependent | No |
| Backup network path | Wi-SUN mesh | No | No |
| Manufacturer warranty | 5 years | Varies | Varies |
| Field-swappable modules | Yes | No | No |
Plain answers
What buyers ask before they order an 80A station
What circuit does an 80A charger need?
An 80A continuous load is normally fed from a dedicated 100A circuit, because the NEC sizes continuous loads at 125 percent. Have a licensed electrician size the breaker and conductors and confirm your service capacity before you order.
Is it hardwired, or does it plug in?
This model is hardwired. There is no NEMA plug, which is what allows it to run at the full 80A. If you would rather plug in, the Autel AC Lite Home 40A uses a NEMA 14-50 outlet instead.
Will it charge my EV?
It uses the J1772 connector, which covers the great majority of EVs sold in North America. Vehicles with a NACS port charge through the adapter supplied with the car, or you can choose the Autel NACS model instead.
My panel is close to its limit. Can I still use it?
Yes. Output current is adjustable, and the station identifies household demand and distributes what is left rather than taking everything at once. Your electrician can also set a hard limit when the unit is commissioned.
What happens if the Wi-Fi drops out?
Charging carries on. Autel pairs Wi-Fi with a Wi-SUN mesh path as a backup, so scheduling and session records survive a router outage.
How long does installation take?
Autel quotes about ten minutes to mount and connect the unit itself thanks to its one-click modular design, and roughly three minutes to swap a component later. The electrical work is the longer part of the job.
Before you order
We do not install. Our installer partner Treehouse quotes licensed electricians for Level 2 charger installation — request an installation quote. Mark in the form that you already have a charger. We may receive a referral fee when you book through our Treehouse link.
